AImenpad Whiteboard Multi-Screen Interaction Function

2019-01-05

"Multi-screen interaction" is one of the core functions of the AImenpad intelligent conference large screen. Through "multi-screen interaction," users can seamlessly connect information between their mobile phones, computers, and the conference large screen during meetings. At the same time, combined with the annotation function, it enables rapid correction of materials and timely recording of information.

01 Multi-screen Synchronization Transfer

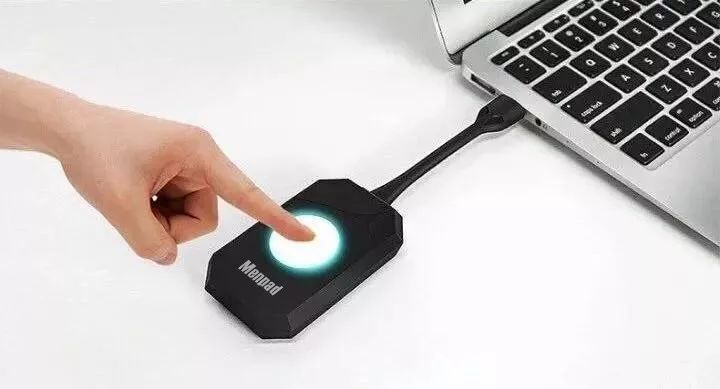

Firstly, use the AImenpad wireless screen transmission treasure (Shinelinker) to wirelessly transmit the screen of a laptop to the AImenpad touch conference large screen;

 then, insert another laptop into a USB wireless screen transmission button and click on transmission.

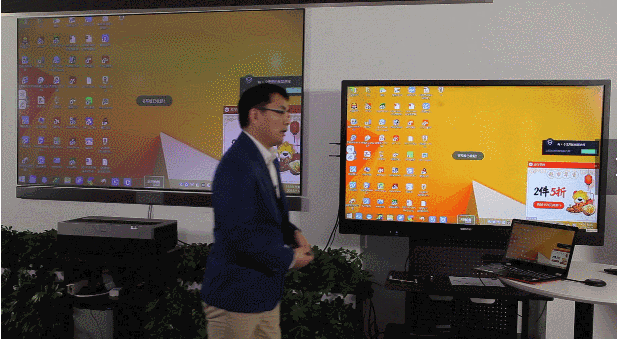

At this time, the screen of two notebooks is wirelessly transmitted to the AImenpad touch conference large screen at the same time.

Any operation on these two notebooks will be synchronized and displayed on the touch conference large screen.

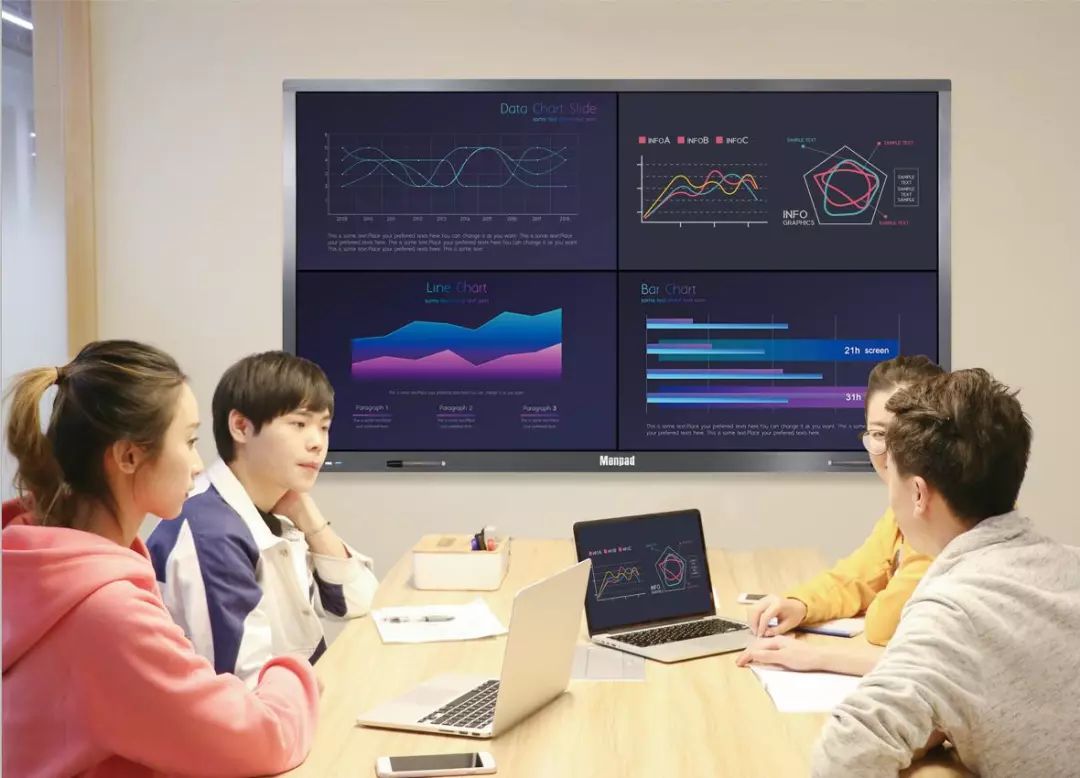

In practical applications, AImenpad can also help customize wireless screen transmission solutions for single-screen, dual-screen, and quad/nine-split configurations.

In addition, the big screen reverse control function of AImenpad can achieve reverse control operations

on the transmitted content, allowing multi-screen interaction to go beyond a one-way level.

For example, when multiple notebooks transmit different screens to the AImenpad touch conference large screen, the AImenpad intelligent stylus can call for annotations, movements, copying, zooming and other functions to operate on the screen on the large screen. The series of operations and results will also be synchronized to the corresponding notebook screens.

02 Three Screens Linkage in One Picture

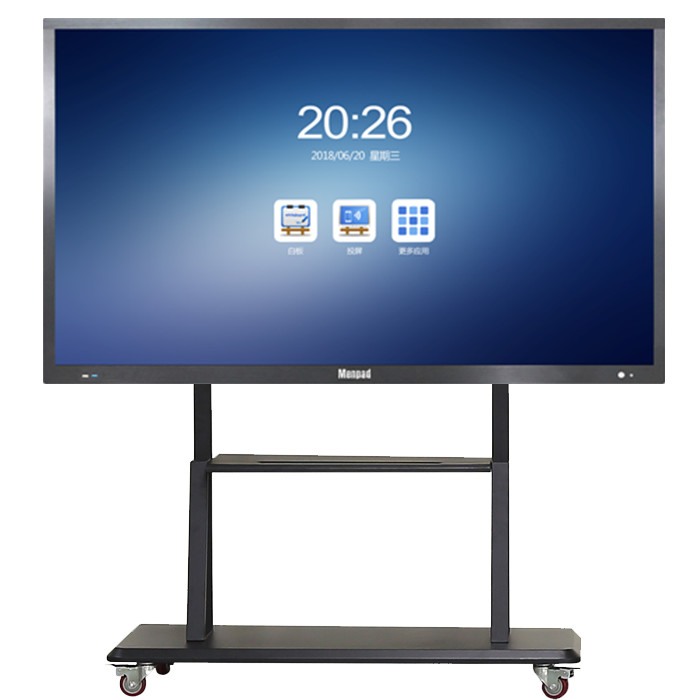

The extended function of the AImenpad touch conference large screen allows you to connect the image of the

 touch conference large screen to a projector or LED large screen via an HDMI cable for synchronized display.

For example, when multiple notebooks transmit different screens to the AImenpad touch conference large screen, the AImenpad intelligent stylus can call for annotations, movements, copying, zooming, and other functions to operate on the screen on the large screen. The series of actions and results will also be synchronized back to the corresponding notebook screens.

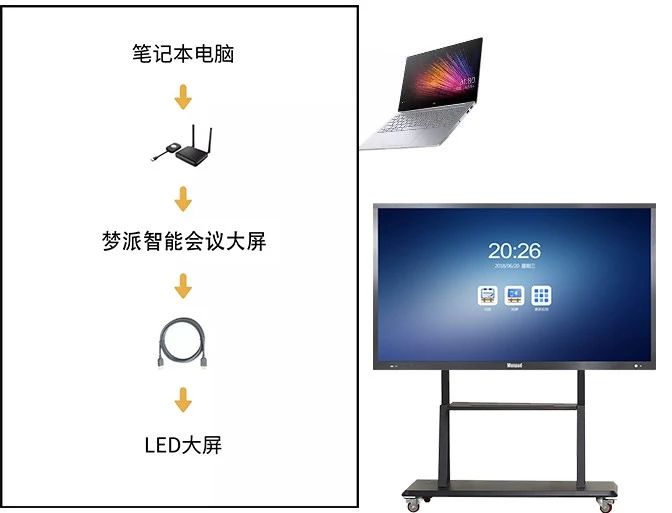

"Three-screen linkage" refers to the wireless transmission of the notebook screen image to the touch conference large screen,

which is then synchronized and displayed on the LED large screen via an HDMI cable.

When operating on the notebook, any action can be displayed on both the touch conference large screen and LED large screen;

when making annotations or conducting meeting research on the touch conference large screen, the actions will also be reflected on the notebook and LED large screen.
