Suzhou Intellectual Property Museum Exhibition Hall Case

2022-04-18

The Suzhou Intellectual Property Museum project took 180 days to complete, with a screen area exceeding 400 square meters and a total pixel count of over 100 million pixels. It uses four 8K broadcast control servers to provide content. The entire integrated intelligent mobile central control system and multimedia broadcast control system allow for the operation of all display screens' switches and content release with just one tablet in hand. All screens are defined according to their shapes, achieving point-to-point resolution without distortion during playback.

I. Lobby

The P3.0 LED full-color display screen has a total size of 17280X7680 (mm), with an overall resolution of 5760*2560, for a total of 14.75 million pixels, approximately covering an area of 133 square meters.

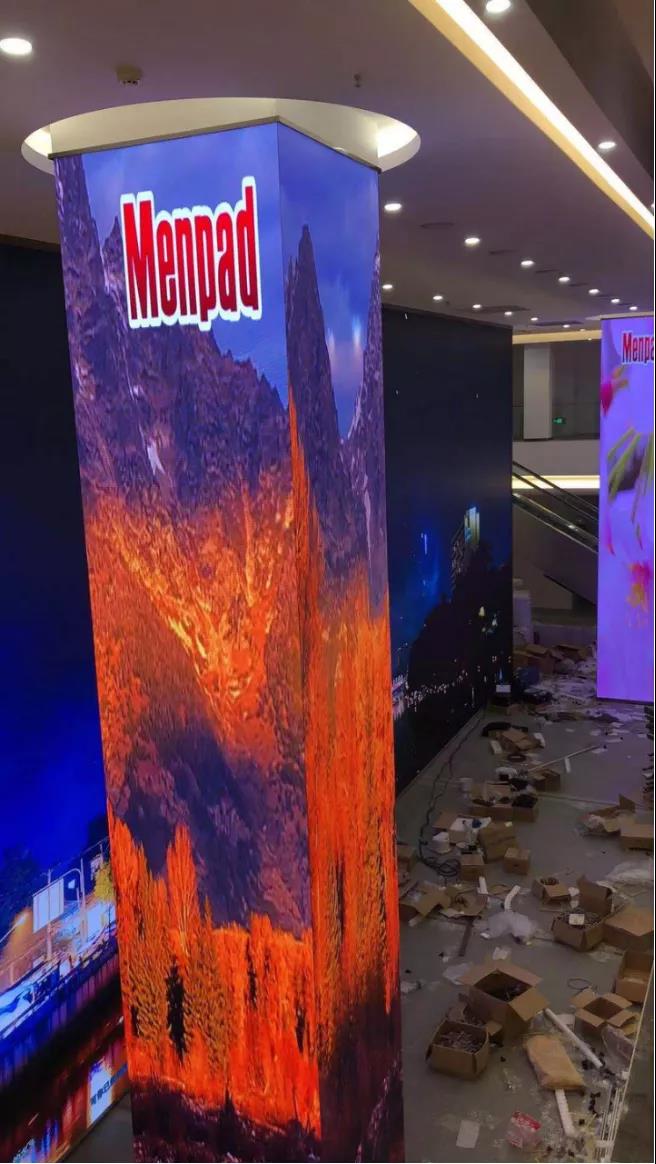

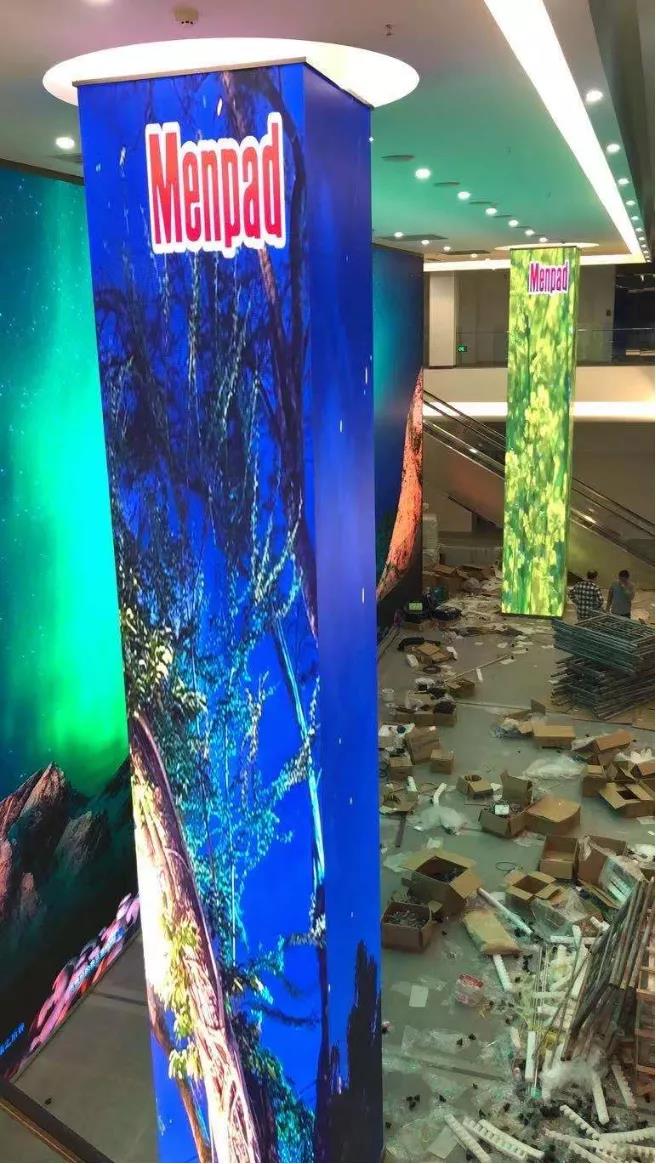

II. Square Energy Column

The two square energy columns use P2.5 LED full-color displays, with a single column screen body total size of 5120*7680 (mm), an overall resolution of 2048*3072, and a total area of 80 square meters for the two columns.

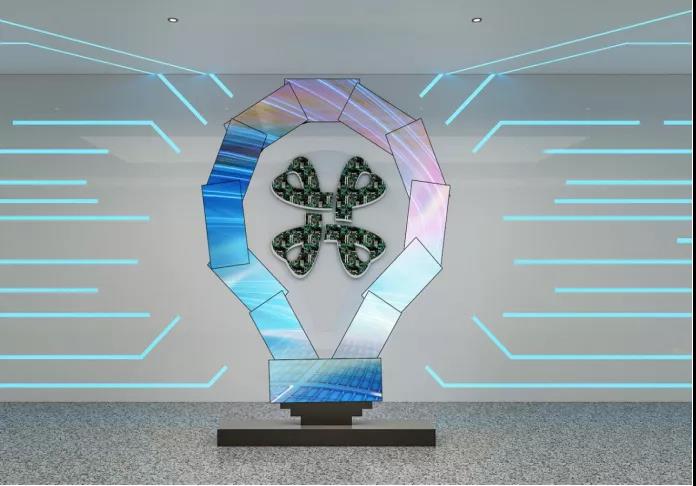

III. Creative Bulb Screen

Alien bulb screen

IV. Trademark Office

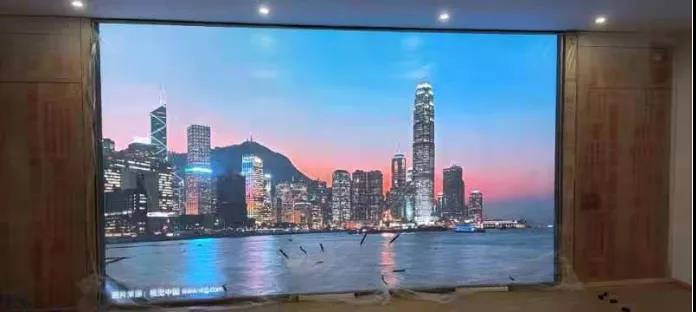

The P2.0 LED full-color display screen is composed of 18 columns and 22 rows of modules, with a total size of 4608X2816mm. The overall resolution is 2304*1408, totaling 3.24 million pixels, and approximately 13 square meters in size.

V. Intellectual Property Science and Technology Museum

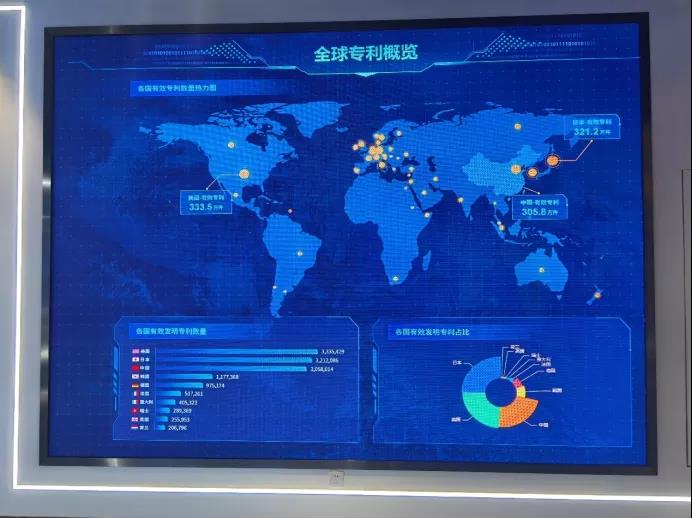

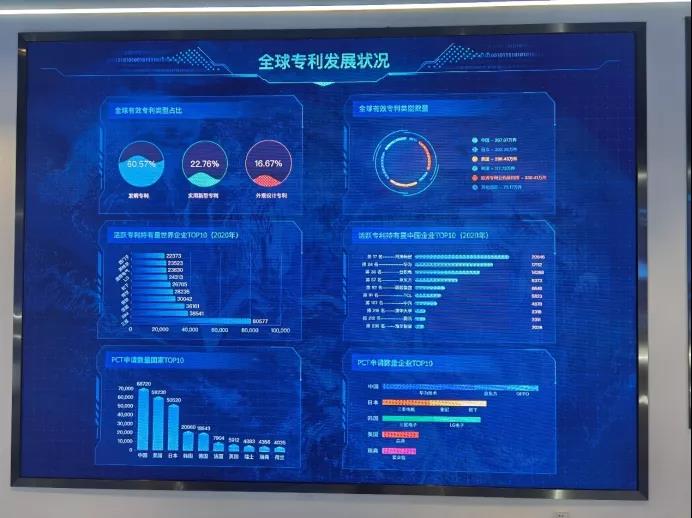

Museum E1-1: Uses a 14 column by 16 row P2.0 LED module mosaic, with a total screen size of 4480*2560 (mm), an overall resolution of 2240*1280, for a total of 2.88 million pixels, approximately 11.5 square meters in total.

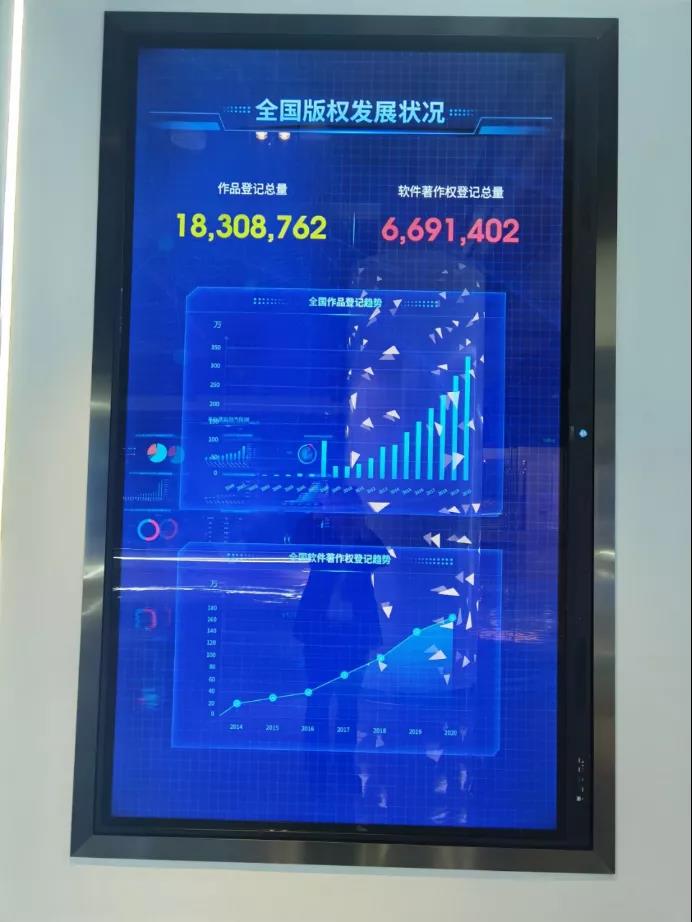

Museum E1-2: 100-inch LCD touch screen

The E1-3:100-inch LCD touch screen in the museum

Museum E1-4: Uses a 14 by 16 P2.0 LED module mosaic, with a total screen size of 4480 * 2560 (mm), an overall resolution of 2240 * 1280, for a total of 2.88 million pixels, approximately covering an area of 11.5 square meters.

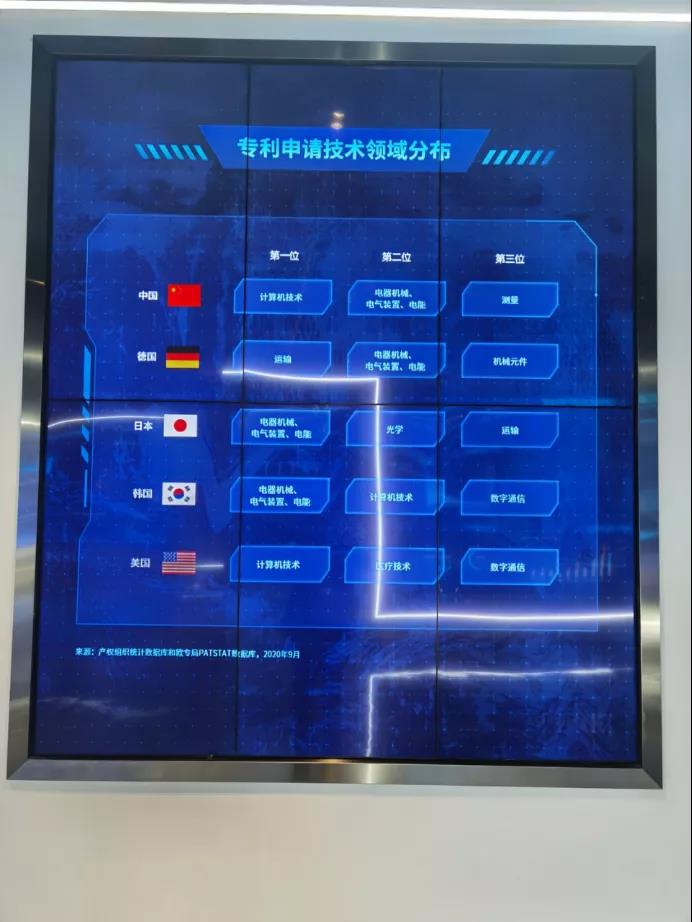

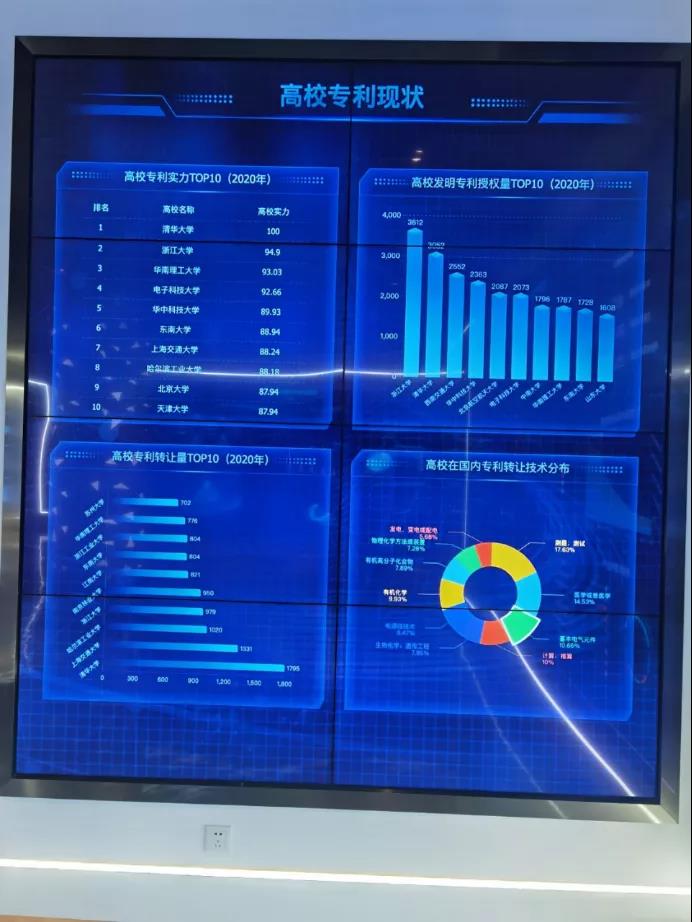

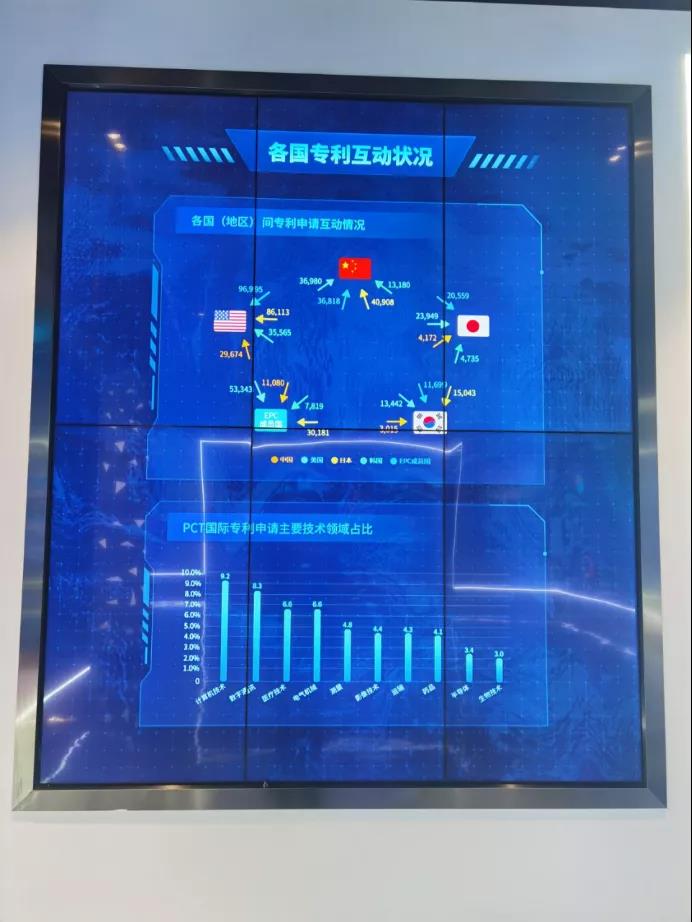

Museum E1-5: Uses 49-inch point-to-point LCD splicing screens arranged in a 2x4 configuration, with the spliced length x height being 2158mm x 2436mm.

Museum E1-6: Uses 55-inch P2P LCD splicing screens, spliced in a column of 1 and a row of 3, with the overall size being 1214mm x 2055mm.

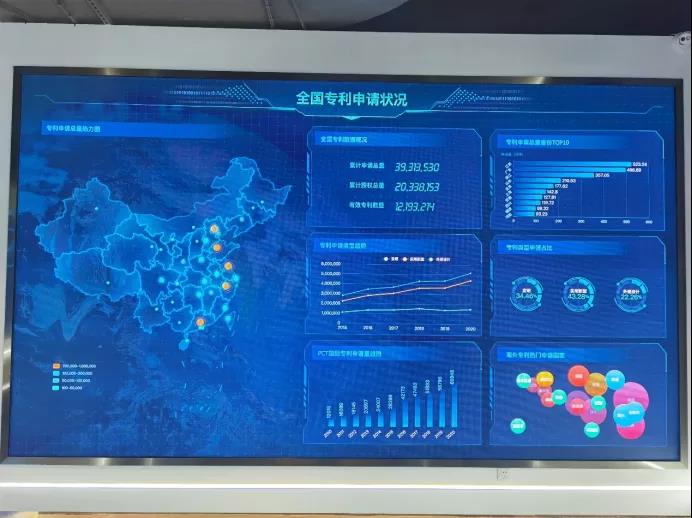

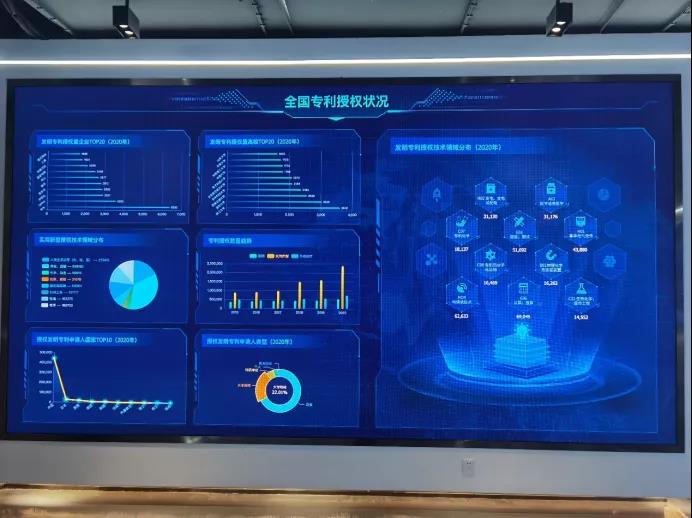

Museum E2-1: Uses a 16x16 P2.0 LED module splicing, with a total screen size of 5120*2560 (mm), an overall resolution of 2560*1280, for a total of 3.28 million pixels, approximately covering 13.11 square meters.

Museum E2-2: Uses a 55-inch PPI LCD splicing screen to be spliced in one column by three rows, with the overall size of the splicing being 1214mm x 2055mm.

Museum E2-3: Uses a 15x16 P2.0 LED module array for splicing, with a total screen size of 4800*2560 (mm), an overall resolution of 2400*1280, a total of 3.08 million pixels, and approximately 12.3 square meters in size.

Museum E3-1: Uses a 13-column by 16-row P2.0 LED module mosaic, with a total screen size of 4160*2560mm, a total resolution of 2080*1280, and a combined pixel count of 2,670,000, approximately 10.65 square meters in total.

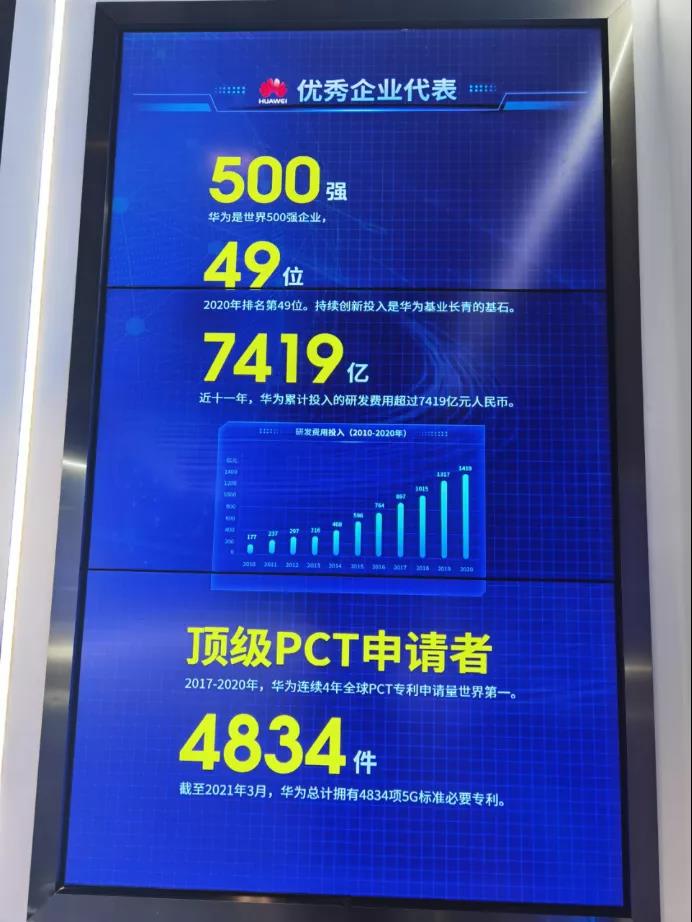

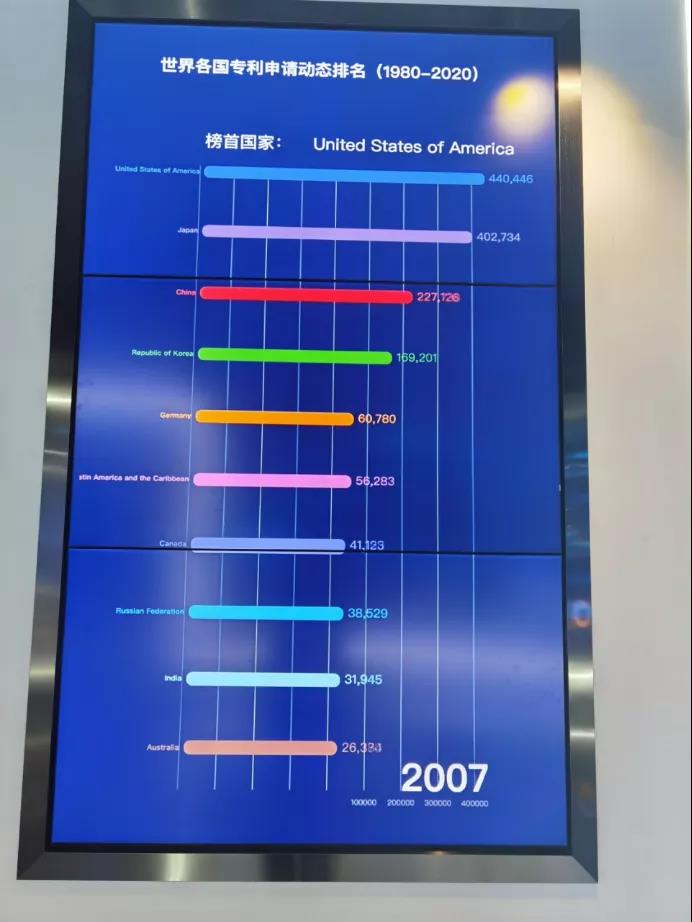

Museum E3-2: Uses a 49-inch PTP LCD splicing screen (vertical splicing) in 3 columns * 2 rows, with the overall size of the spliced display being 1827mm x 2158mm.

Museum E3-3: Uses an assembly of 11 rows and 16 columns of P2.0 LED modules, with a total screen size of 3520*2560 mm, overall resolution of 1760*1280, totaling 2.26 million pixels, approximately covering an area of 9.02 square meters.

Museum E3-4: Uses 49-inch PPI LCD splicing screens (vertical screen splicing) in a 3x2 configuration, with the overall size of the spliced screen being 1827mm x 2158mm.

Museum E3-5: Uses a 55-inch PTP LCD splicing screen, spliced in 1 column * 3 rows. The overall size of the splice is 1214mm x 2055mm.

Museum E3-6: Uses a 11x16 P2.0 LED module mosaic, with a total screen size of 3520*2560 (mm), an overall resolution of 1760*1280, and a total of 2.26 million pixels, approximately covering 9.02 square meters.

Museum E4-1: Uses a 15x16 P2.0 LED module splicing, with a total screen size of 4800*2560 (mm), an overall resolution of 2400*1280, for a total of 3,080,000 pixels, approximately covering 12.3 square meters.

Museum E4-2: 100-inch LCD touch screen
