Overall Machine Characteristics Housing and Appearance Aluminum alloy frame corner block design, front-mounted buttons, front-mounted ports, front-mounted speakers Overall Machine Dimensions 2212.3mm*1315.8mm*105.9mm(without camera is 1303.5mm) Maximum Power Rate ≤500W(computer-containing) Standby Power ≤0.5W System Parameters Processor 8 core A55 ,1.2MHz GPU Quad-core MaliG52 1.2GHz System Android 12 Embedded System Memory 4G Storage Space 32GB Display Parameters Display Size 98inch(16:9) Display Type LED Display Image Display Size 2158.85 (H) x 1214.35(V)mm Physical Resolution 3840(H)×2160(V) Refresh Rate 60HZ Brightness 300cd/m2 Contrast 1200:1 Angle of View (degrees) 178° Display Screen Protection 4mm Fully Tempered High Explosion-Proof Glass Backlight Life 50000h Functional Interface Parameters Video Support Formats H263,H264,H265,MPEG2,MPEG4,VC1,VP6,VP8,VP9,MJPEG,AVS,AVS+,AVS2 ... Audio Support Formats MP3,WAV,AAC,AC3,EAC3,Vorbis,FLAC,APE,TrueHD,DTS,DTSHD .. Supported Resolution 480i / 480p / 576i / 576p / 720p / 1080i / 1080p / 2160p Decoding 3D digital comb filter, 3D image motion noise reduction, 3D motion adaptive comb filtering, etc. Horn Specifications 10W/8 ohm x 2 speakers Audio Characteristics Balance, Auto Volume Control, Surround Sound, Equalizer Port RJ45 In*1 RJ45 Out*1 HDMI In *1 HDMI Out *1 HDMI (eARC) *1 RS232*1 Audio Out*1 Coaxial*1 MIC In*1 DP In*1 PC Audio In *1 VGA In *1 PC Touch*1 USB3.0*1 USB2.0*1 TF Card*1 Standard random accessories (accessories are provided according to actual conditions) Name Quantity 100-foot Interactive Smart Tablet 1 Remote Control 1 Warranty Card 1 Touch Pen 1 Certificate of Compliance 1 Instruction Manual 1 1.5 Meter Power Cord 1 Overall dimensions (for reference only, actual size may vary) Unit: mm Note: The illustration shows the model including a camera, without a camera is 1303.5mm. Optional Modules and Accessories Infrared touch module Name Parameter Function Multi-touch module Touch method: Infrared induction Supports independent writing and drawing with a maximum number of points or less. Drive mode: Plug and play Supports occlusion feature Random Accessory Name Parameter Function Pen Infrared lectern convenient for writing Feature options (optional features) Name Parameter Function Camera Pixel: 13M Face tracking, sound source localization, echo cancellation Omni-directional label Video conferencing usage Haishitong Remote video conferencing usage Wireless screen projection Wireless screen projection usage Name Parameter Function Tempered Glass 98inch Tempered Glass Computer Configuration Plan One (OPS Plan) Mid-range / i3 configuration High-end / i5 configuration Top-of-the-line/i7 configuration Chipset Intel chipset CPU Intel Core i3 Intel Core i5 Intel Core i7 Storage 4G DDR3 memory / 2.5-inch 500GB hard drive 4G DDR3 memory / 2.5-inch 500GB hard drive 4G DDR3 memory / 2.5-inch 500GB hard drive Graphics Card Intel Core Graphics Intel HD Graphics Intel Core Graphics Intel HD Graphics Intel Core Graphics Intel HD Graphics Interface 4 USB 2.0 ports, 2 USB 3.0 ports, 1 RJ45 network interface, 1 MIC input, 1 HDMI output, 1 VGA output, 1 LINE output, supports wifi 802.11b/g/n Operating System Windows 10 Ultimate Operating System Computer Configuration Plan II (OPS Plan) Mid-range / i3 configuration High-end / i5 configuration Top-of-the-line / i7 configuration Chipset Intel chipset CPU Intel Core i3 Intel Core i5 Intel Core i7 Storage 4G DDR3 memory / 2.5-inch 500GB hard drive 4G DDR3 memory / 2.5-inch 500GB hard drive 4G DDR3 memory / 2.5-inch 500GB hard drive Graphics Card Intel Core Graphics Intel HD Graphics Intel Core Graphics Intel HD Graphics Intel Core Graphics Intel HD Graphics Interface 2 USB 2.0 ports, 2 USB 3.0 ports, 1 RJ45 network interface, 1 HDMI, 1 LINE output, 1 MIC input, supports wifi; Operating System Windows 10 Ultimate Operating System Note: The difference between the desktop solution and the notebook solution lies in that the desktop solution has a more comprehensive interface and higher processing speed, while the notebook solution has better graphic display performance. [Take actual items as the standard]
Overall Machine Characteristics
2212.3mm*1315.8mm*105.9mm(without camera is 1303.5mm)
≤500W(computer-containing)
≤0.5W
System Parameters
Processor
8 core A55 ,1.2MHz
Quad-core MaliG52 1.2GHz
System
Android 12 Embedded System
Memory
Storage Space
Display Parameters
LED Display
2158.85 (H) x 1214.35(V)mm
3840(H)×2160(V)
60HZ
300cd/m2
Functional Interface Parameters
H263,H264,H265,MPEG2,MPEG4,VC1,VP6,VP8,VP9,MJPEG,AVS,AVS+,AVS2 ...
MP3,WAV,AAC,AC3,EAC3,Vorbis,FLAC,APE,TrueHD,DTS,DTSHD ..
480i / 480p / 576i / 576p / 720p / 1080i / 1080p / 2160p
3D digital comb filter, 3D image motion noise reduction, 3D motion adaptive comb filtering, etc.
10W/8 ohm x 2 speakers
Audio Characteristics
Balance, Auto Volume Control, Surround Sound, Equalizer
RJ45 In*1 RJ45 Out*1
HDMI In *1 HDMI Out *1 HDMI (eARC) *1
RS232*1
Audio Out*1
Coaxial*1
MIC In*1
DP In*1
PC Audio In *1
VGA In *1
PC Touch*1
USB3.0*1 USB2.0*1
TF Card*1

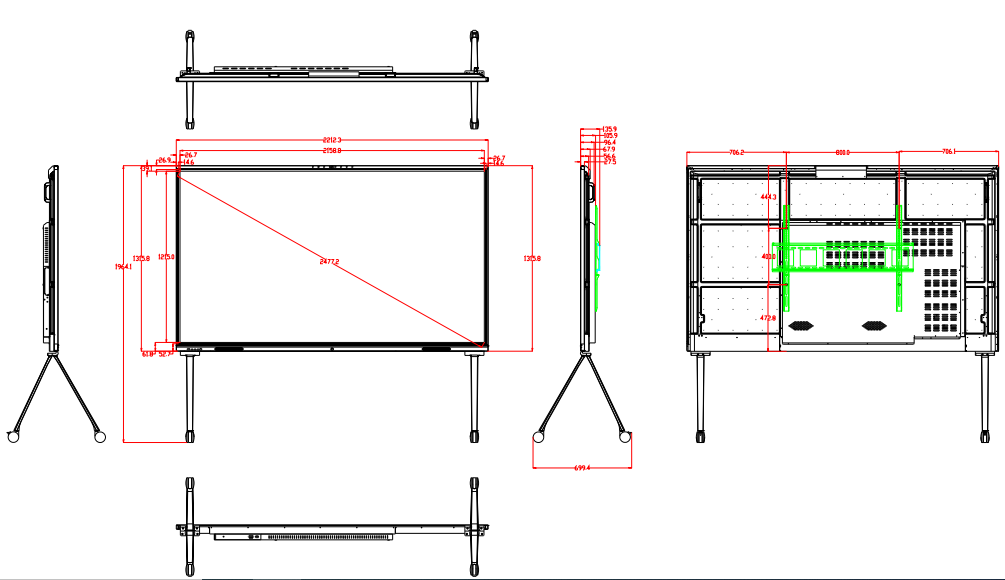

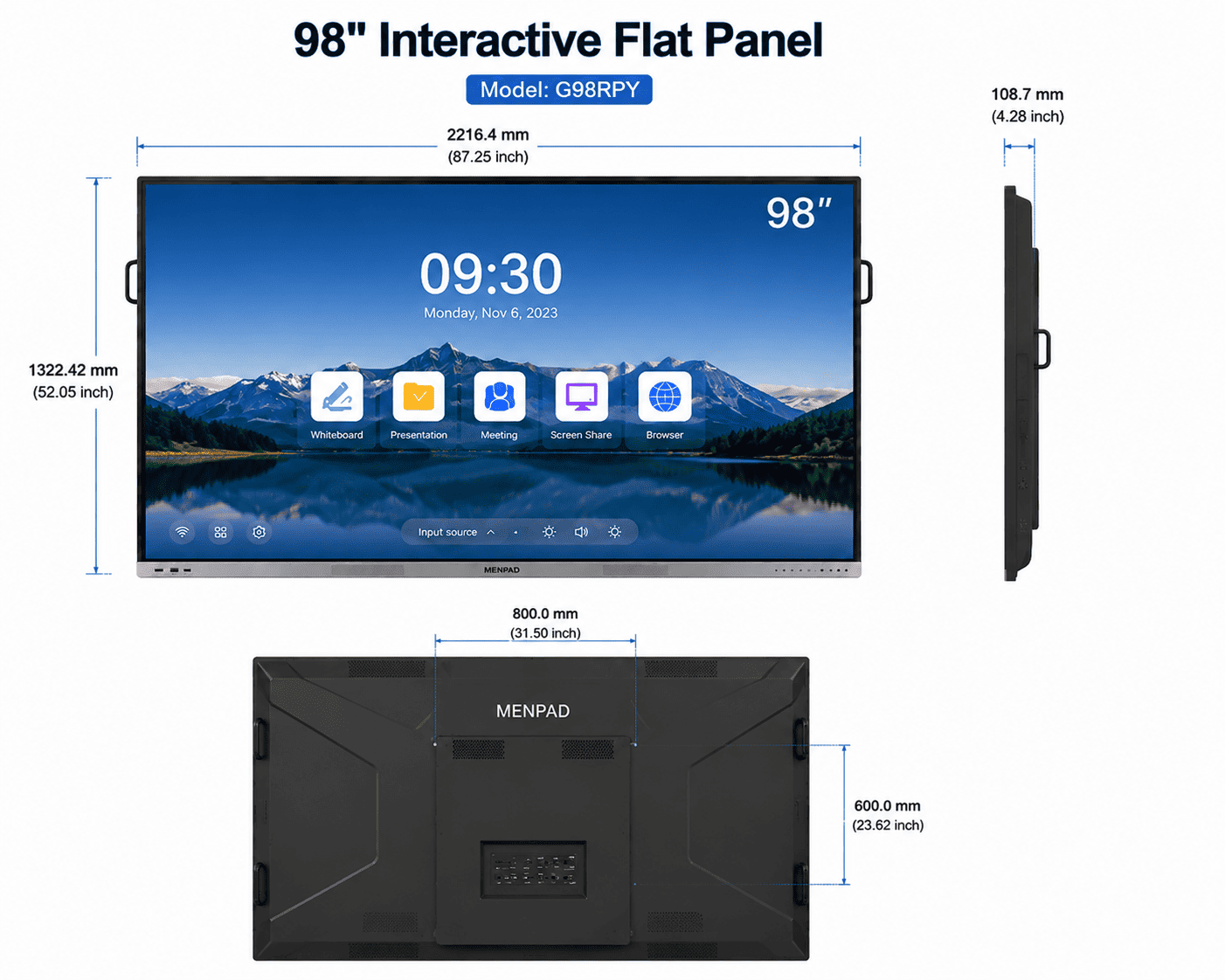

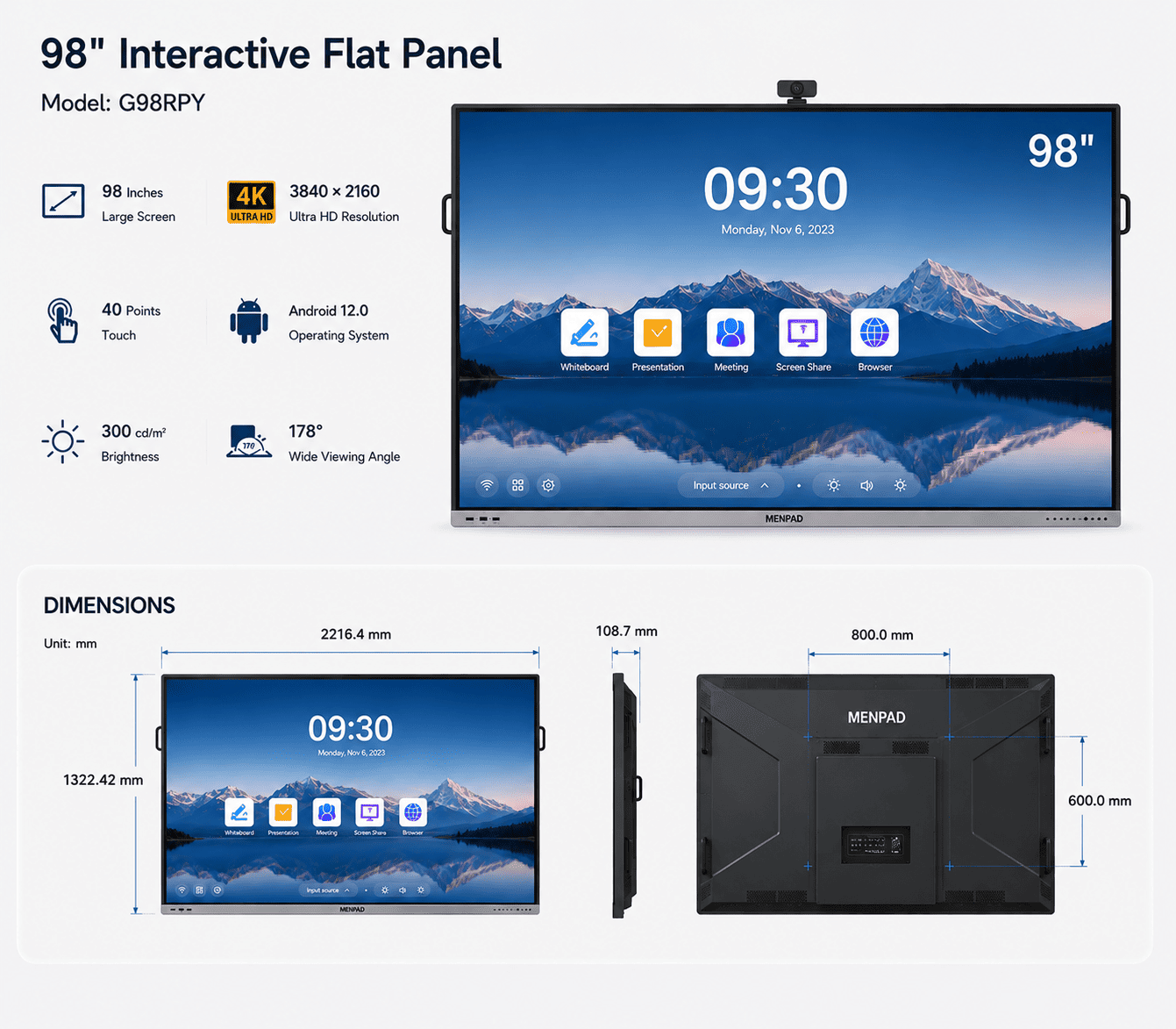

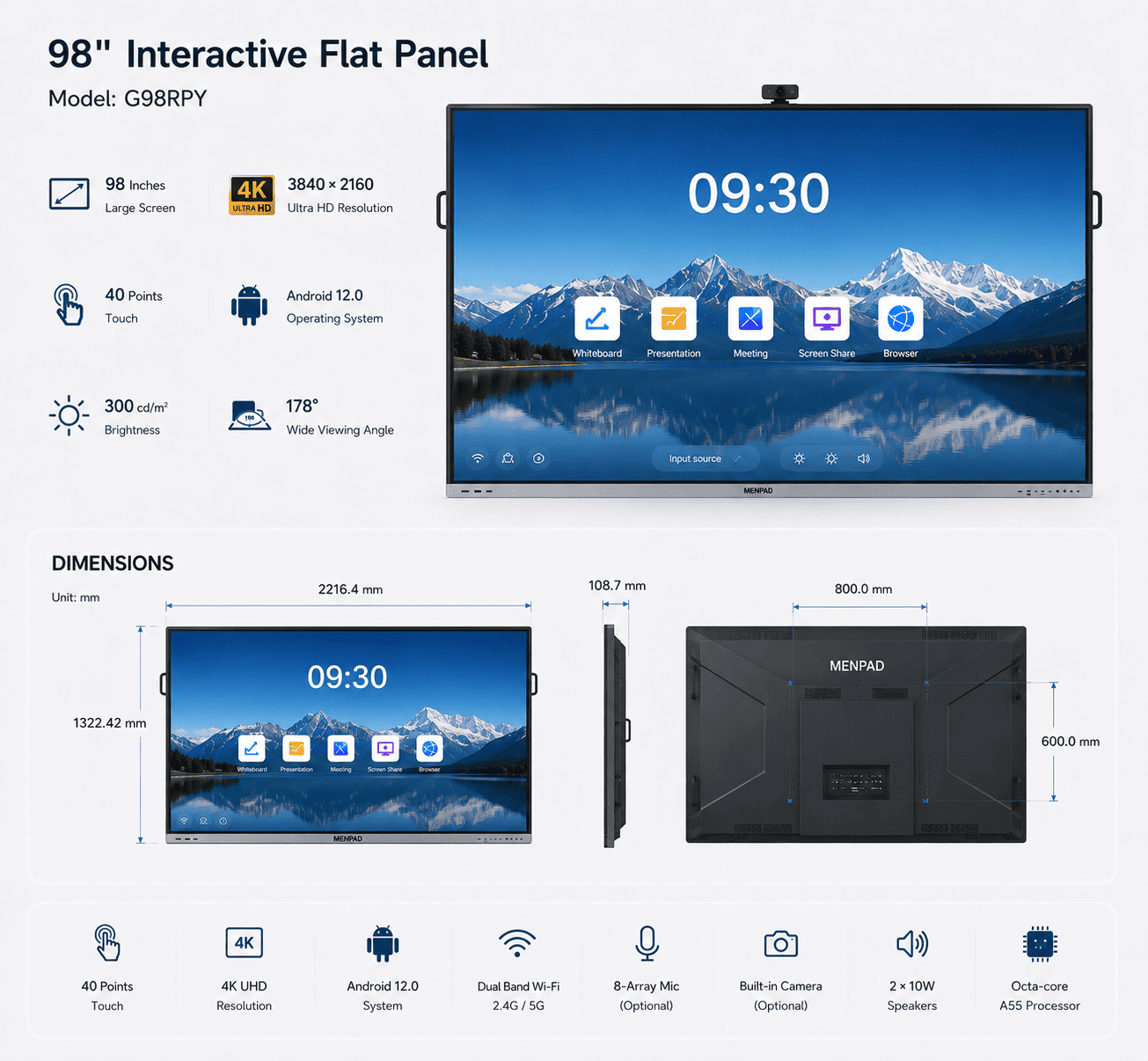

Note: The illustration shows the model including a camera, without a camera is 1303.5mm.
Optional Modules and Accessories
Intel Core i3
Intel Core i5
Intel Core i7
4G DDR3 memory / 2.5-inch 500GB hard drive
Intel Core Graphics Intel HD Graphics
4 USB 2.0 ports, 2 USB 3.0 ports, 1 RJ45 network interface, 1 MIC input, 1 HDMI output, 1 VGA output, 1 LINE output, supports wifi 802.11b/g/n
Mid-range / i3 configuration
High-end / i5 configuration
Top-of-the-line / i7 configuration
2 USB 2.0 ports, 2 USB 3.0 ports, 1 RJ45 network interface, 1 HDMI, 1 LINE output, 1 MIC input, supports wifi;
Windows 10 Ultimate Operating System
Note: The difference between the desktop solution and the notebook solution lies in that the desktop solution has a more comprehensive interface and higher processing speed, while the notebook solution has better graphic display performance. [Take actual items as the standard]
