Overall Machine Characteristics

Specification	Model	Parameter
Panel	LCD Size	75"
	Panel Incoming Inspection Standards	A Standard
	Light Source	DLED backlight
	Resolution Ratio	1920 x 1080pixels
	Brightness (typ)/(min)	200cd/m²(typ.)
	Contrast(typ)/(min)	5000:1(typ.)
	Viewing Angle	178°(H)/178°(V)
	Viewing Area	1650mm(H) ×928 mm (V)
	Audio Output Power	2 X10W
System	Architecture	TSUMV53RWU-Z1
Power	Power Consumption (Operating)	≤200W
	Power Consumption (Standby)	≤0.5W
	Machine life	50000h
	Power requirements	100-240V, 50/60Hz
Attachments	Wall Mount Rack	*1
	Instruction Manual	*1
	Warranty Card	*1
	Certificate of Conformity	*1
	Power Cord	*1
	Remote Control	*1

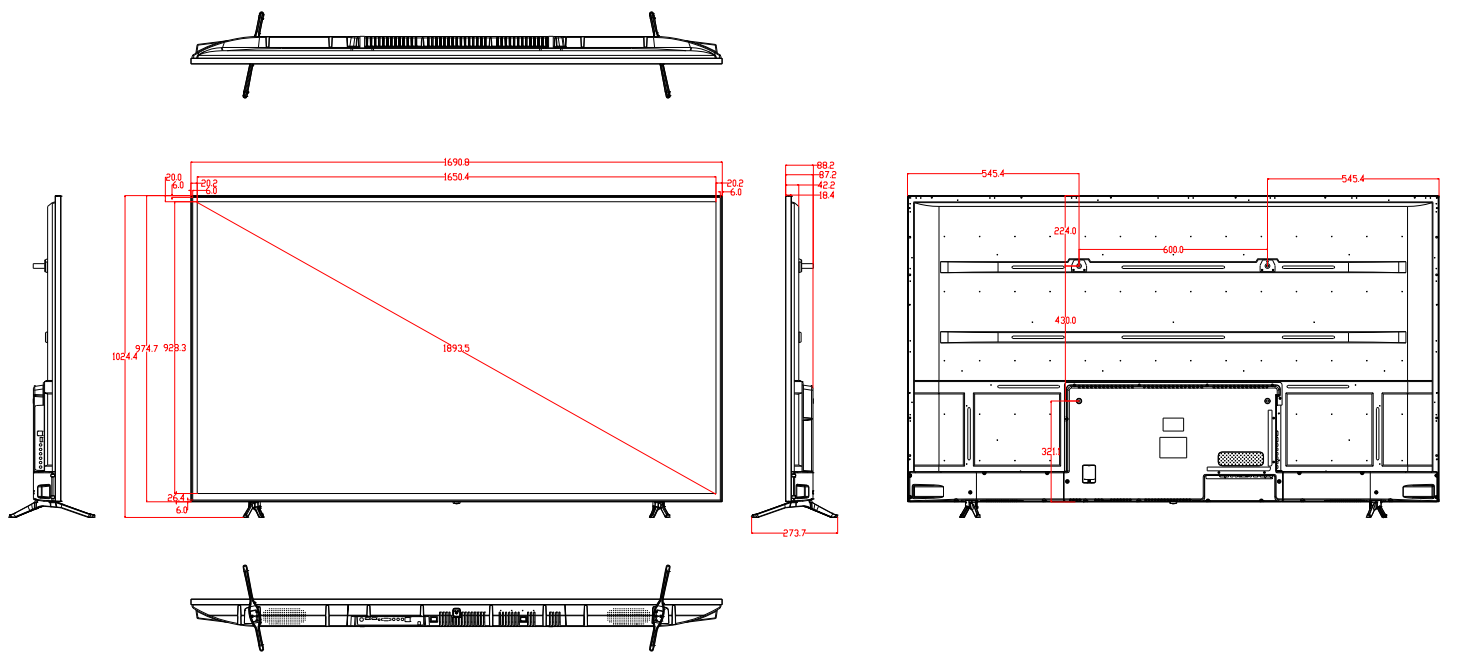

D75GFE (DC) Explosion-Proof 2K Smart TV Structural Six-View Diagram

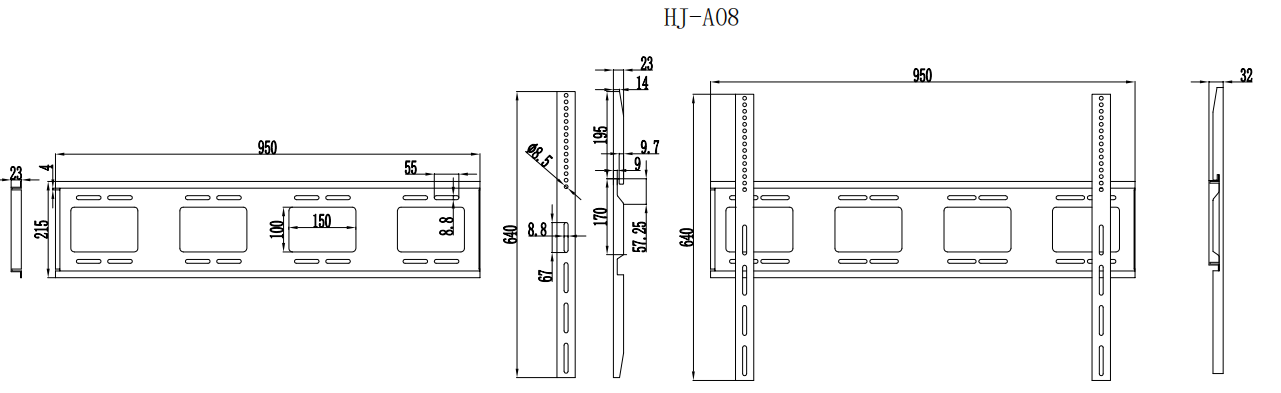

D75GFE (DC) Explosion-Proof 2K Smart TV Wall-Mount Structure Diagram
