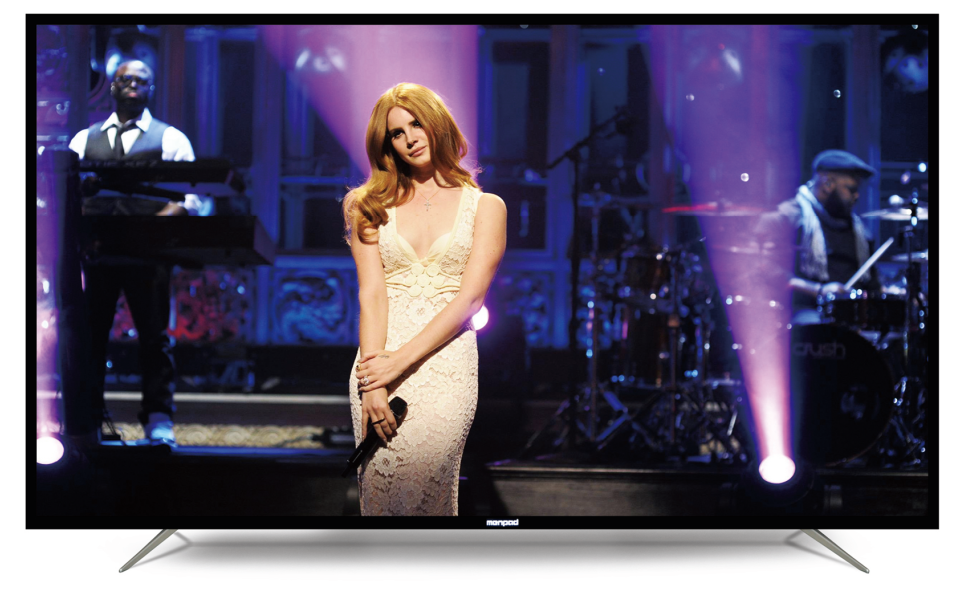

75'' Explosion-Proof 4K Smart TV

4K full-core decoding, stronger, faster, more stable, high dynamic range display technology, deeper enhancement of picture brightness and darkness details to present the texture of the image, dual independent sound cavity design, creating a three-dimensio

产品概述





Overall Machine Characteristics

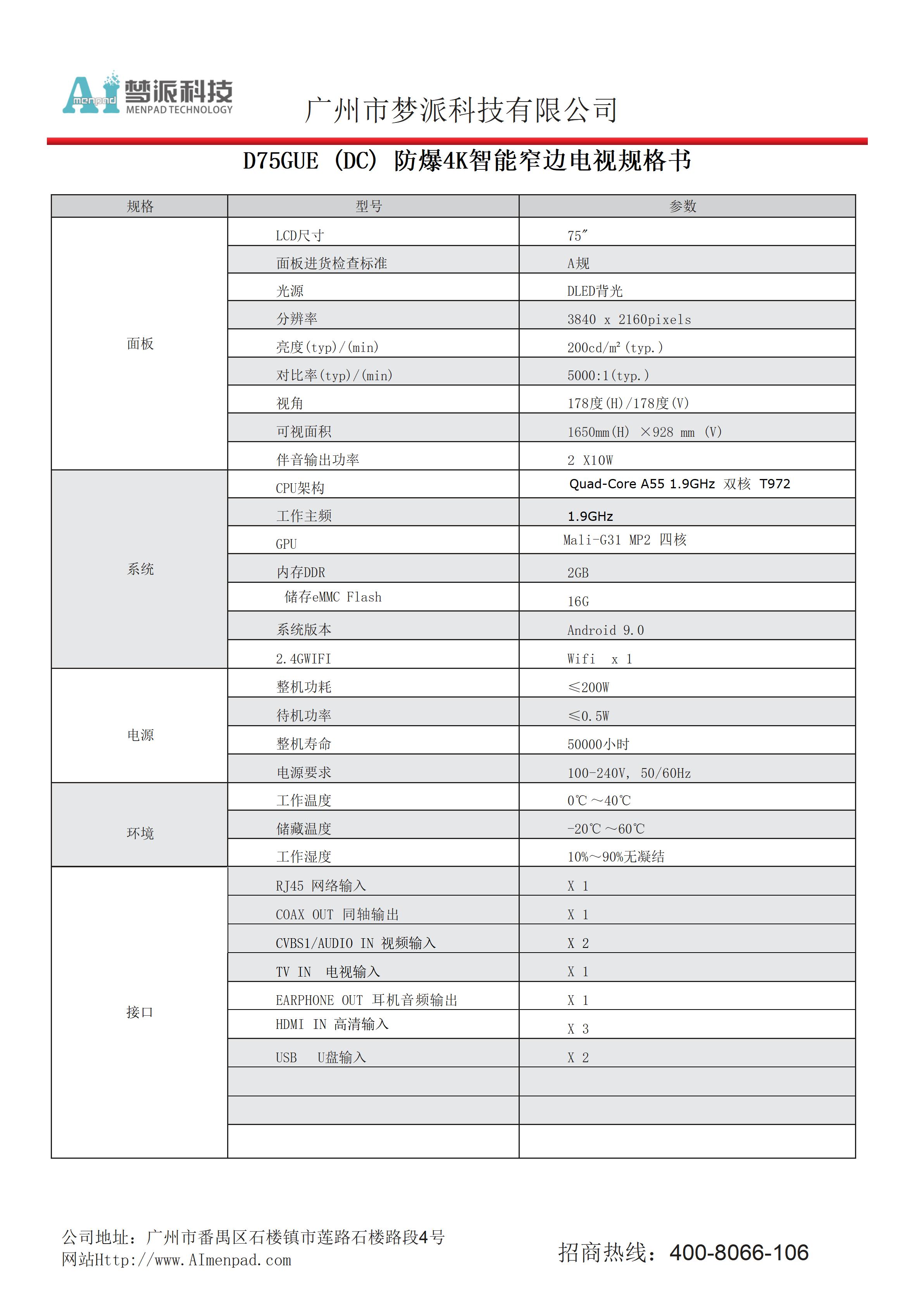

                                Specification

                                                                                   Model

                                                                                    Parameters

                       Panel

LCD Size

75"

Light Source

DLED backlight

Resolution Ratio

3840 x 2160pixels

Contrast(typ)/(min)

1200:1(typ.)

Viewing Angle

178°(H)/178°(V)

Viewing Area

1649.66(W)×927.936(H) mm

Audio Output Power

2 X10W

                        System

CPU

Quad-Core A55 1.9GHz  T972

Operating Frequency

1.9GHz

GPU

Mali-G31 MP2

Memory DDR

1G

Storage eMMC Flash

8G

System

Android 9.0

2.4GWIFI

Wifi  x 1

                            Power

Power Consumption (Operating)

≤138W

Power Consumption (Standby)

≤0.5W

Machine life

50000 hours

Power requirements

100-240V, 50/60Hz

Environment

Operating Temperature

0℃ ～40℃

Storage temperature

-20℃ ～60℃

Operating Humidity

10%～90%(non-condensing)

Interface

EARPHONE OUT

*1

RJ45

*1

CVBS/AUDIO IN

*1

TV

*1

HDMI IN

*3

USB

*2

COAX

*1

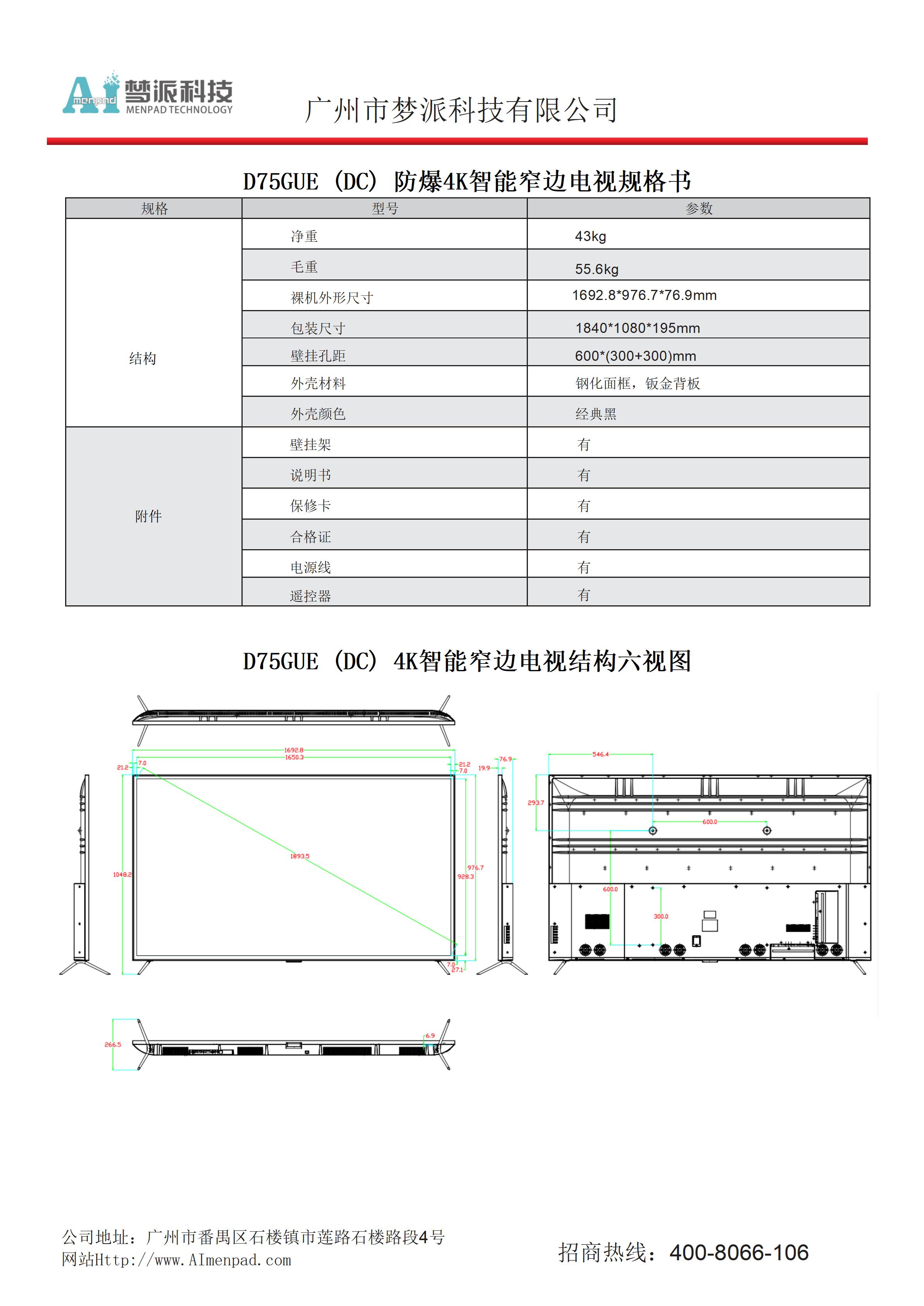

D75GUE (DC) Explosion-Proof 4K Smart TV Structural Six-View Diagram
