Overall Machine Characteristics

Specification	Model	Parameter
System	CPU	Quad-Core A55 1.9GHz Dual-Core T972
	Operating Frequency	1.9GHz
	GPU	Mali-G31 MP2 Quad-Core
	Memory DDR	2GB
	Storage eMMC Flash	16G
	System	Android 9.0
	2.4GWIFI	Wifi  x 1
Panel	Resolution Ratio	3840 x 2160pixels
	Brightness (typ)/(min)	280cd/m²(typ.)
Attachments	Wall Mount Rack	*1
	Instruction Manual	*1
	Warranty Card	*1
	Certificate of Conformity	*1
	Power Cord	*1
	Remote Control	*1

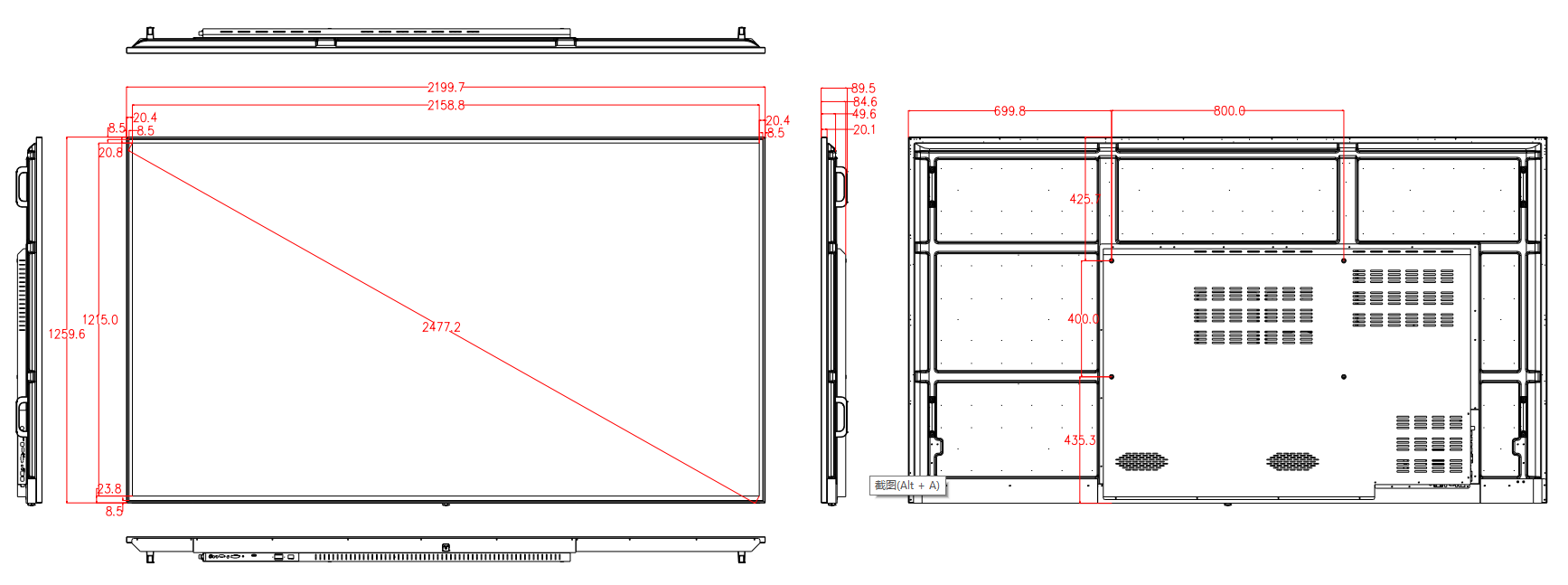

D98GUE (DC) Explosion-Proof 4K Smart TV Structural Six-View Diagram

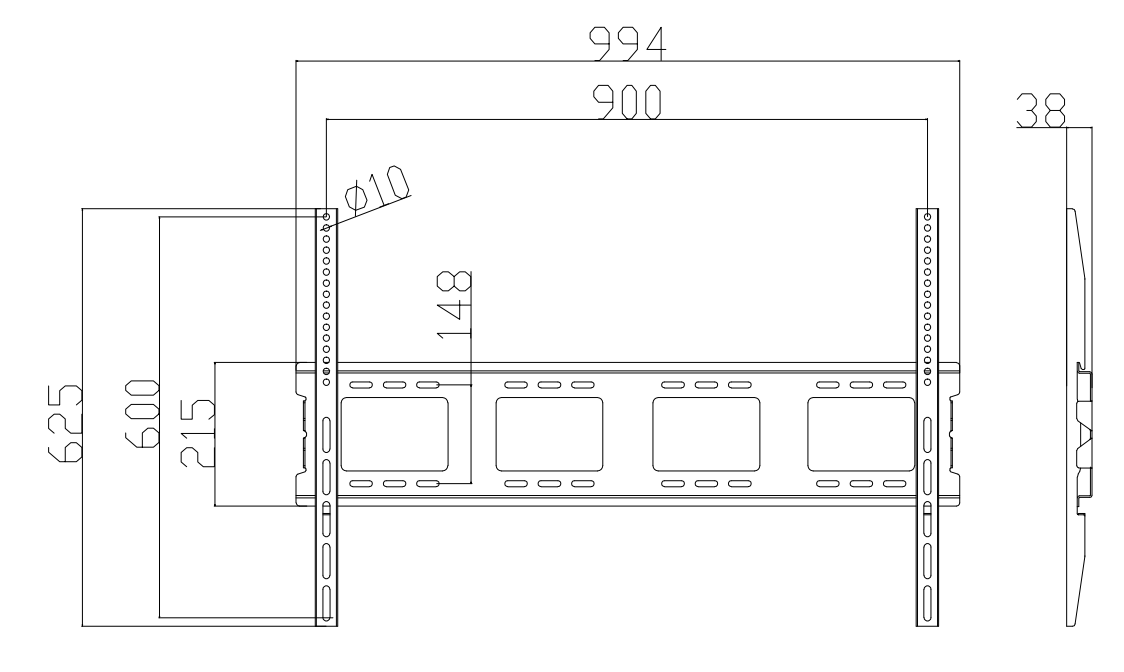

D98GUE (DC) Explosion-Proof 4K Smart TV Wall-Mount Structure Diagram
