Overall Machine Characteristics

Specification	Model	Parameter
Panel	LCD Size	85"
	Panel Incoming Inspection Standards	A Standard
	Light Source	DLED backlight
	Resolution Ratio	3840 x 2160pixels
	Brightness (typ)/(min)	200cd/m²(typ.)
	Contrast(typ)/(min)	5000:1(typ.)
	Viewing Angle	178°(H)/178°(V)
	Viewing Area	1872（H）x1053（V）mm
	Audio Output Power	2 X10W
System	CPU	Quad-Core A55 1.9GHz  T972
	Operating Frequency	1.9GHz
	GPU	Mali-G31 MP2
	Memory DDR	2GB
	Storage eMMC Flash	16G
	System	Android 9.0
	2.4GWIFI	Wifi  x 1
Power	Power Consumption (Operating)	≤280W
	Power Consumption (Standby)	≤0.5W
	Machine life	50000h
	Power requirements	100-240V, 50/60Hz
Attachments	Wall Mount Rack	*1
	Instruction Manual	*1
	Warranty Card	*1
	Certificate of Conformity	*1
	Power Cord	*1
	Remote Control	*1

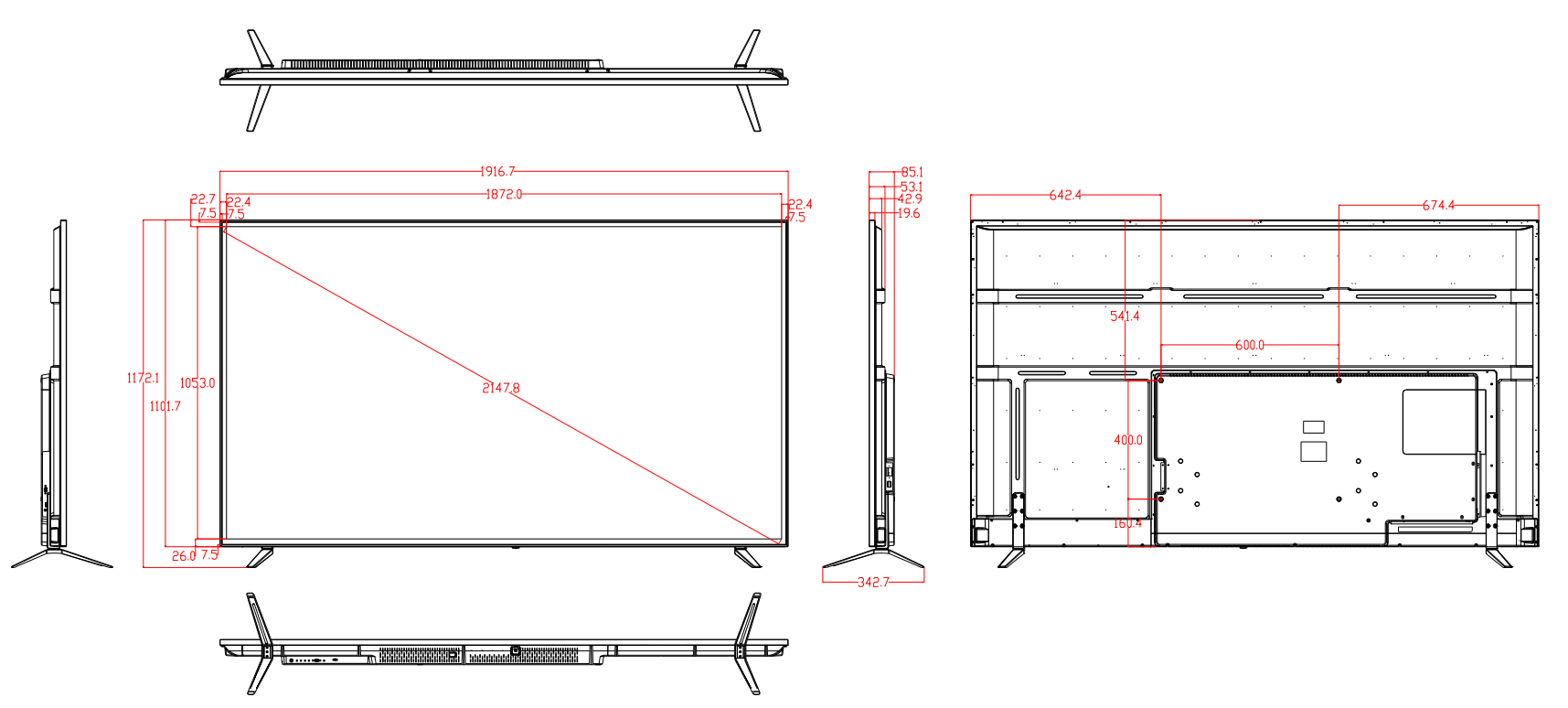

D85GUE (DC) Explosion-Proof 4K Smart TV Structural Six-View Diagram

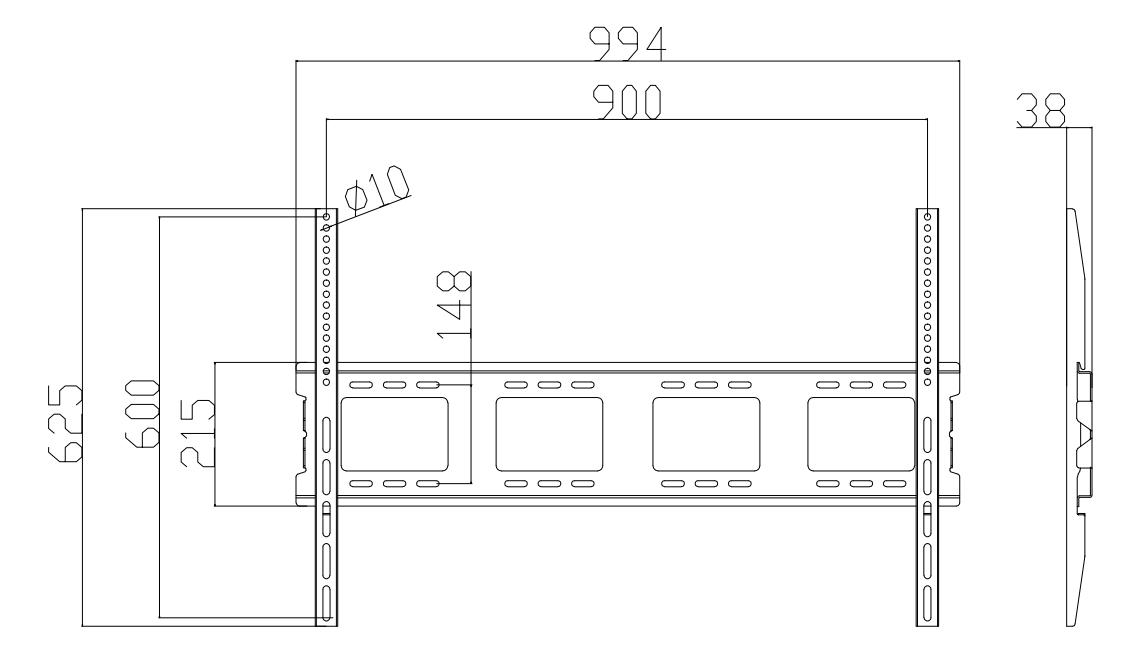

D85GUE (DC) Explosion-Proof 4K Smart TV Wall-Mount Structure Diagram
