Overall Machine Characteristics

Housing and Appearance	Aluminum alloy frame corner block design, front-mounted buttons, front-mounted ports, front-mounted speakers

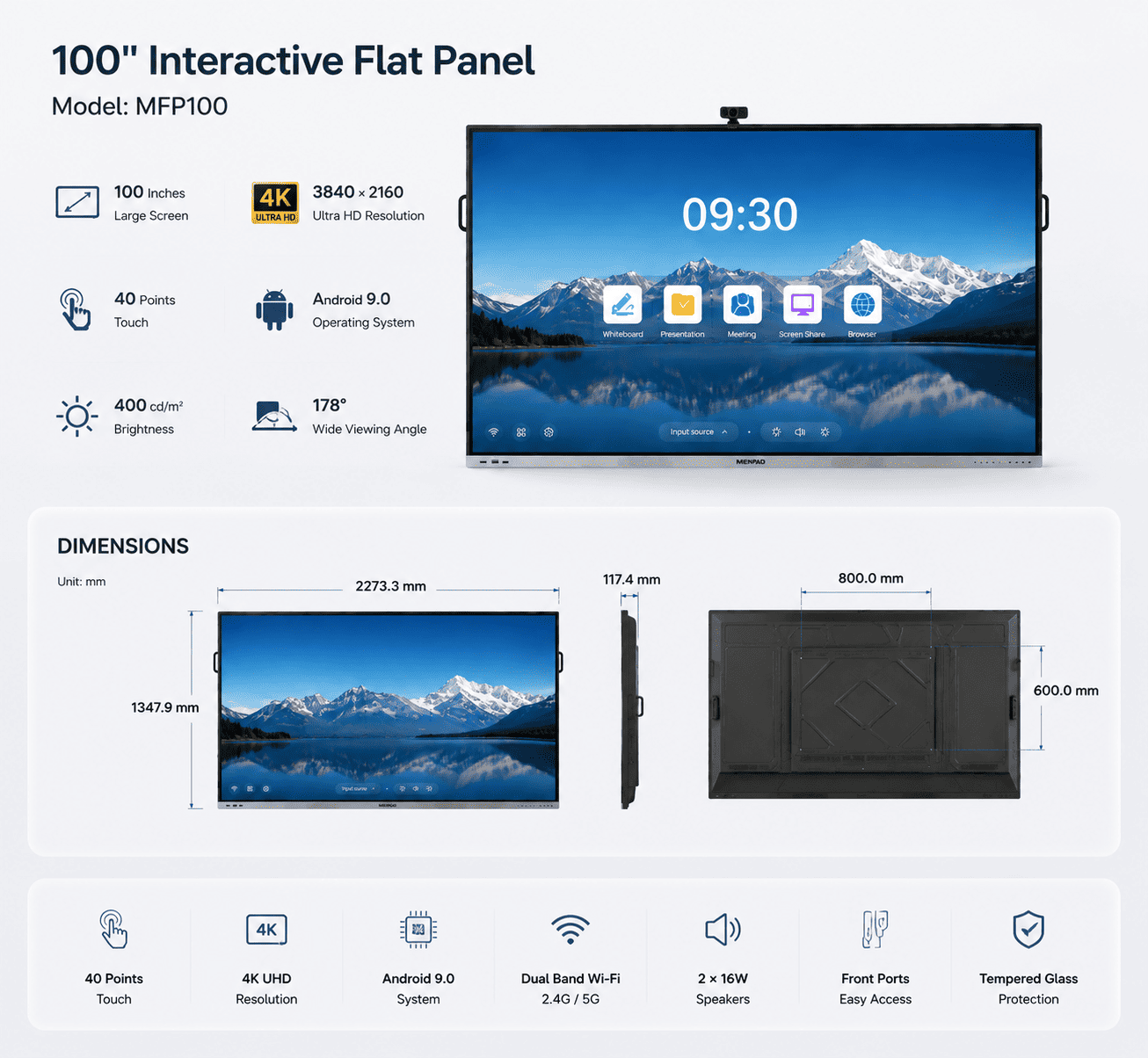

Overall Machine Dimensions	2273.3 X 1347.9 X 117.4 MM
Maximum Power Rate	≤570W (including computer)
Standby Power	≤0.5W

System Parameters

Processor	CORTEX A55 Quad-Core 1.2GHz
GPU	Mali-G52
System	Android 9.0 Embedded System
Memory	3G
Storage Space	32GB
External Storage	The SD card can be expanded up to 128GB; USB2.0/3.0 supports up to 1T.

Display Parameters

Display Size	100 inches（16:9）
Display Type	LED LCD Display
Image Display Size	2203.2 (H) x 1239.3 (V)
Physical Resolution	3840（H）×2160（V）
Display Color	8biz，1.07B
Refresh Rate	120HZ
Brightness	400cd/m2
Contrast	4000:1
Angle of View (degrees)	178°
Display Screen Protection	4mm Fully Tempered High Explosion-Proof Glass
Backlight Life	50000 h

Standard random accessories (accessories are provided according to actual conditions)

Name	Quantity
100-foot Interactive Smart Tablet	1
Remote Control	1
Warranty Card	1
Touch Pen	1
Certificate of Compliance	1
Instruction Manual	1
1.5 Meter Power Cord	1

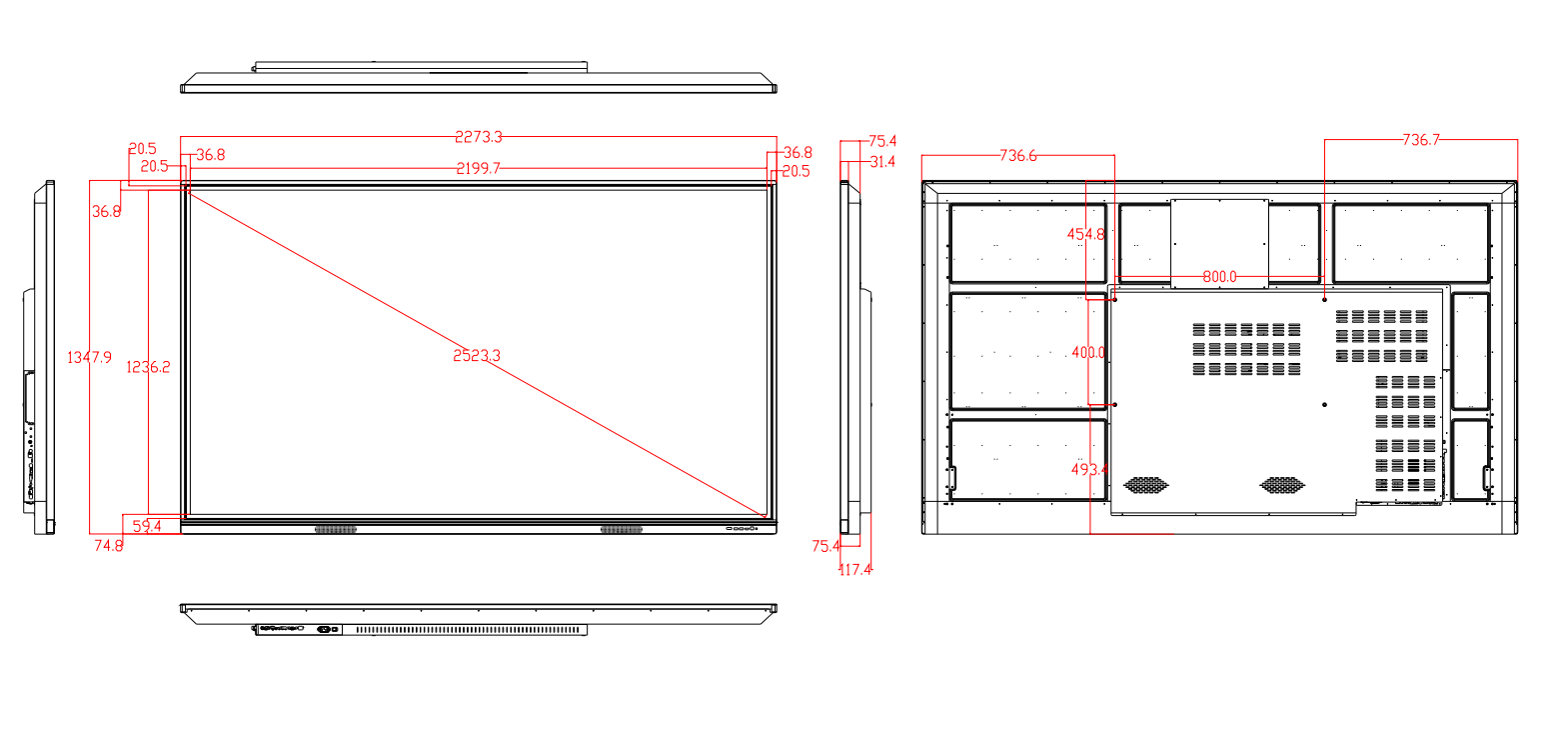

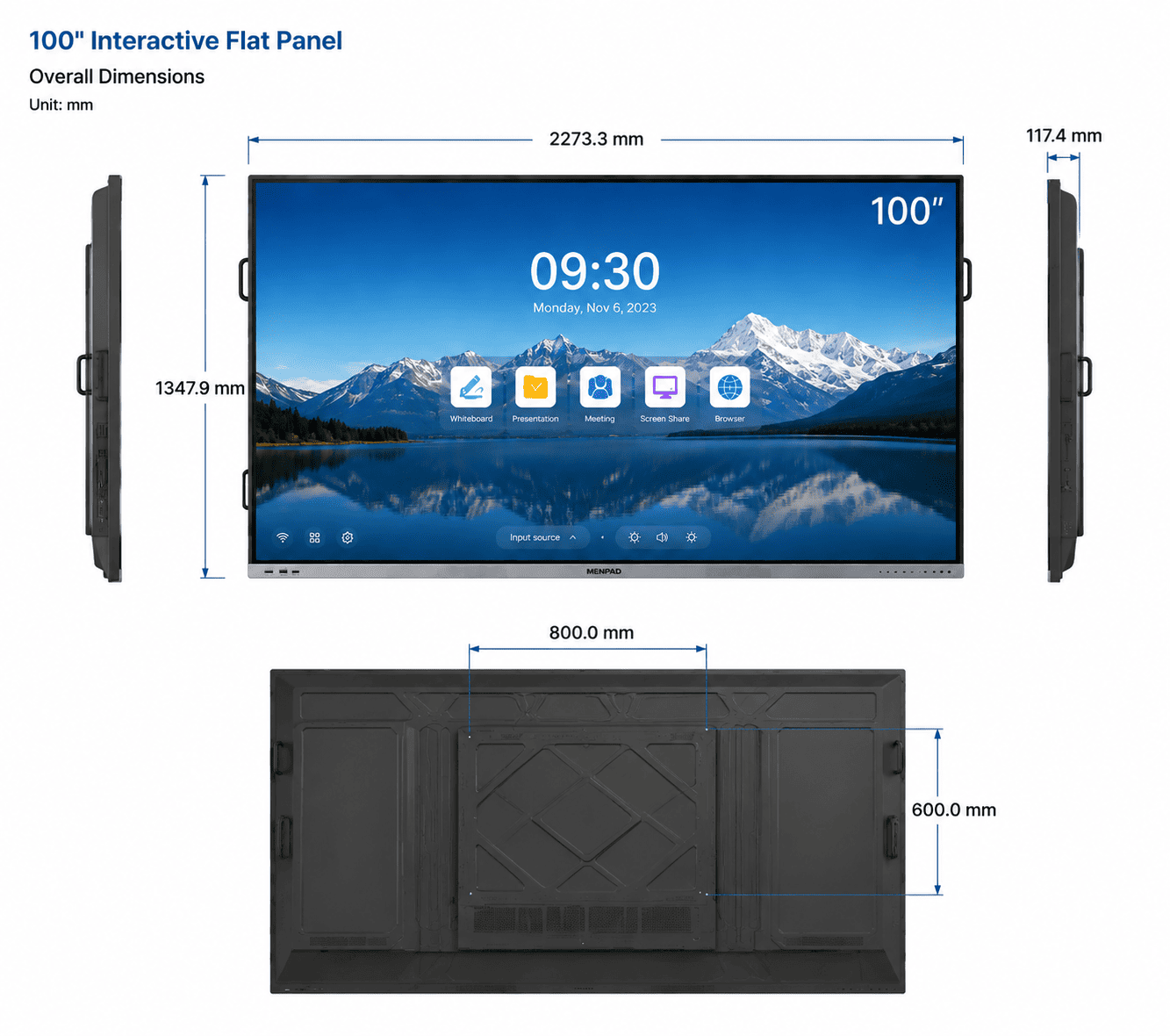

Overall dimensions (for reference only, actual size may vary) Unit: mm
Optional Modules and Accessories

Infrared touch module
Name	Parameter	Function
Multi-touch module	Touch method: Infrared induction Drive mode: Plug and play	Supports independent writing and drawing with a maximum number of points or less.
random accessory
name	parameter	function
teacher's stick	Infrared lectern	convenient for writing
Feature Option
name	parameter	function
camera	Pixel: 5 million	High-definition camera photo and video recording function
tempered glass
name	parameter	function
Anti-glare glass	100 inches	anti-glare

Computer Configuration Plan One (OPS Plan)
	Mid-range / i3 configuration	High-end / i5 configuration	Top-of-the-line / i7 configuration
Chipset	Intel chipset
CPU	Intel Core i3	Intel Core i5	Intel Core i7
Storage	4G DDR3 memory / 2.5 inch 500GB hard drive	4G DDR3 memory/2.5 寸 500G hard drive	4G DDR3 memory/2.5 寸 500G hard drive
Graphics Card	Intel Core Graphics, Intel HD Graphics	Intel Core Graphics, Intel HD Graphics	Intel Core Graphics, Intel HD Graphics
Interface	4 USB2.0 ports, 2 USB3.0 ports, 1 RJ45 network interface, 1 MIC input, 1 HDMI output, 1 VGA output, 1 LINE output, supports wifi 802.11b/g/n
Operating System	Windows 7 Ultimate Operating System

Computer Configuration Plan II (OPS Plan)
	Mid-range / i3 configuration	High-end / i5 configuration	Top-of-the-line/i7 configuration
Chipset	Intel chipset
CPU	Intel Core i3	Intel Core i5	Intel Core i7
memory	4G DDR3 memory / 2.5 inch 500GB hard drive	4G DDR3 memory/2.5 寸 500G hard drive	4G DDR3 memory/2.5 寸 500G hard drive
Graphics card	Intel core graphics Intel HD Graphics	Intel core graphics Intel HD Graphics	Intel core graphics Intel HD Graphics
Interface	2 USB2.0 ports, 2 USB 3.0 ports, 1 RJ45 network interface, 1 HDMI, 1 LINE output, 1 MIC input, supports wifi;
Operation System	Windows 7 Ultimate operating system

Note: The difference between the desktop solution and the notebook solution lies in that the desktop solution has a more comprehensive interface and higher processing speed, while the notebook solution offers better graphics display performance [subject to actual products].
