Overall Machine Characteristics

Housing and Appearance	Aluminum alloy frame corner block design, front-mounted buttons, front-mounted ports, front-mounted speakers
Overall Machine Dimensions	2500.8mm*1477.5mm*108.7mm
Package Size	2665x1597x298mm
Maximum Power Rate	≤800W(computer-containing）
Standby Power	≤0.5W
Net Weight	185KG
Gross Weight	240KG

System Parameters

Processor	8 core A55 ,1.2MHz
GPU	Quad-core MaliG52 1.2GHz
System	Android 12 Embedded System
Memory	4G
Storage Space	32GB

Display Parameters

Display Size	110inches（16:9）
Display Type	LED LCD Display
Image Display Size	2436.48 (H) x 1370.52(V)mm
Physical Resolution	3840（H）×2160（V）
Display Color	10bit, 1.07B
Refresh Rate	120HZ
Brightness	400cd/m2
Contrast	1200：1
Angle of View (degrees)	178°
Display Screen Protection	4mm Fully Tempered High Explosion-Proof Glass
Backlight Life	50000h

Functional Interface Parameters

Video Support Formats	H263,H264,H265,MPEG2,MPEG4,VC1,VP6,VP8,VP9,MJPEG,AVS,AVS+,AVS2 ...
Audio Support Formats	MP3,WAV,AAC,AC3,EAC3,Vorbis,FLAC,APE,TrueHD,DTS,DTSHD ..
Supported Resolution	480i / 480p / 576i / 576p / 720p / 1080i / 1080p / 2160p
Decoding	3D digital comb filter, 3D image motion noise reduction, 3D motion adaptive comb filtering, etc.
Horn Specifications	10W/8 ohm x 2 speakers
Audio Characteristics	Balance, Auto Volume Control, Surround Sound, Equalizer

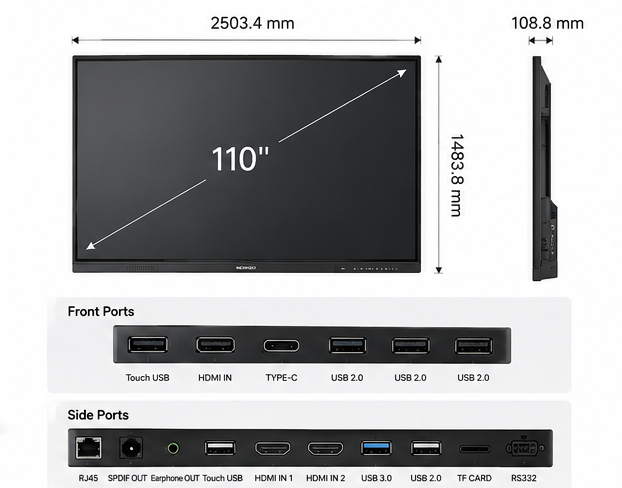

Port	RJ45 In*1         RJ45 Out*1
	HDMI In *1       HDMI Out *1       HDMI (eARC) *1
	RS232*1
	Audio Out*1
	Coaxial*1
	MIC In*1
	DP In*1
	PC Audio In *1
	VGA In *1
	PC Touch*1
	USB3.0*1          USB2.0*1
	TF Card*1

Standard random accessories (accessories are provided according to actual conditions)

Name	Quantity

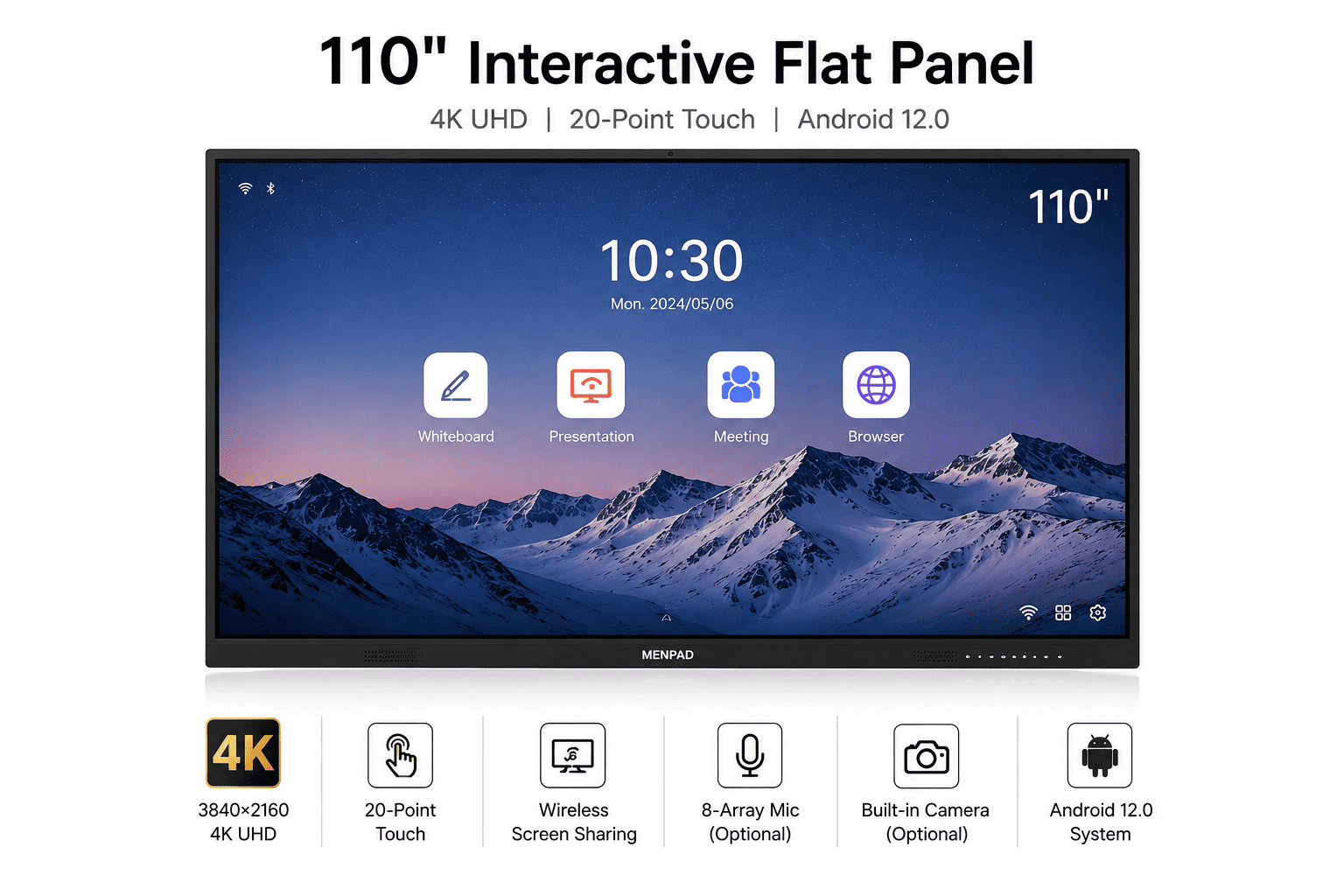

110-inch Interactive Intelligent Conference All-in-One Machine	1
Remote Control	1
Warranty Card	1
Touch Pen	1
Certificate of Compliance	1
Instruction Manual	1
1.5 Meter Power Cord	1

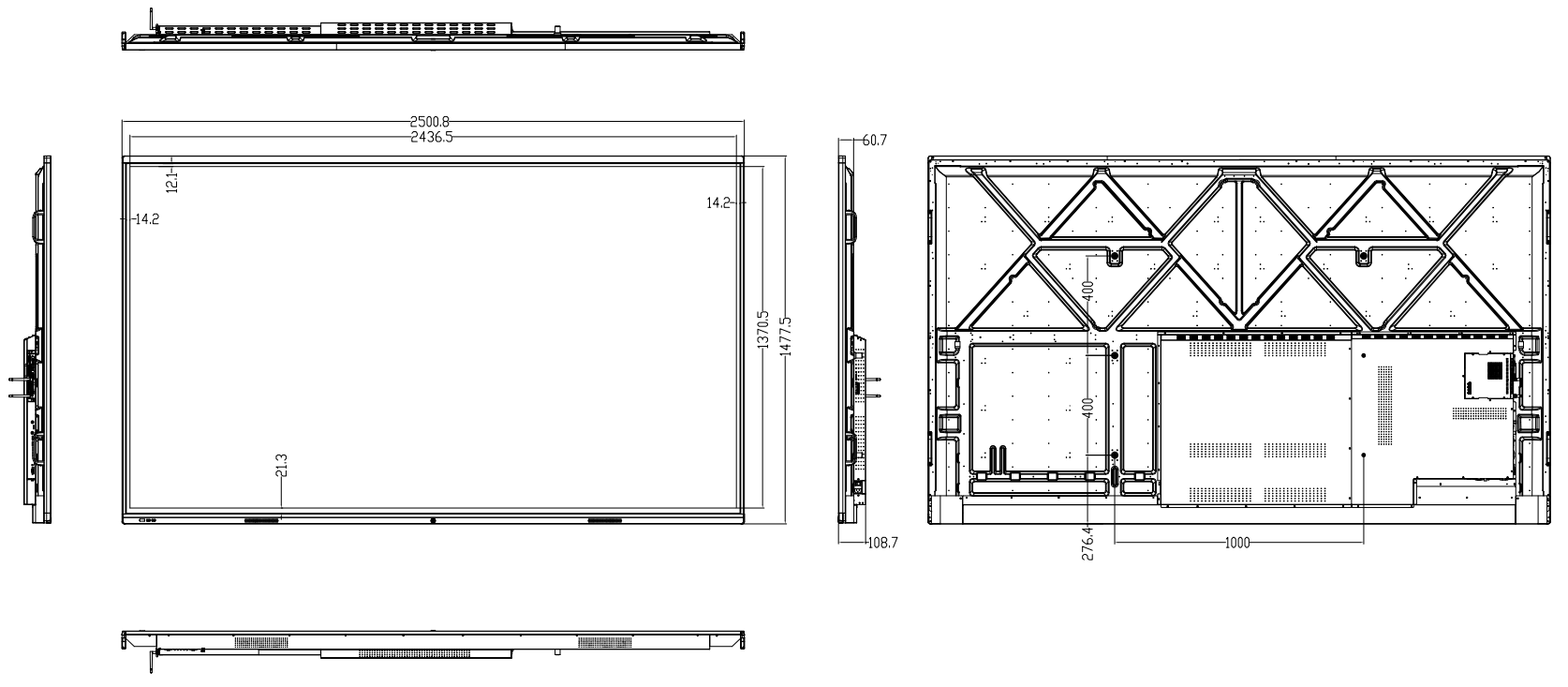

Overall dimensions (for reference only, actual size may vary) Unit: mm

Note: The illustration shows the model without a camera.

Optional Modules and Accessories

Infrared touch module
Name	Parameter	Function
Multi-touch module	Touch method: Infrared induction Drive mode: Plug and play	Supports independent writing and drawing with a maximum number of points or less.
random accessory
Name	Parameter	Function
teacher's stick	Infrared lectern	convenient for writing
Feature options (optional features)
Name	Parameter	Function
Camera	Pixel: 13M	Face tracking, sound source localization, echo cancellation
Omni-directional label		Video conferencing usage
Haishitong		Remote video conferencing usage
Wireless screen projection		Wireless screen projection usage
tempered glass
Name	Parameter	Function
Tempered Glass	110寸	Tempered Glass

Computer Configuration Plan One (OPS Plan)
	Mid-range / i3 configuration	High-end / i5 configuration	Top-of-the-line/i7 configuration
Chipset	Intel chipset
CPU	Intel Core i3	Intel Core i5	Intel Core i7
Storage	4G DDR3 memory / 2.5-inch 500GB hard drive	4G DDR3 memory / 2.5-inch 500GB hard drive	4G DDR3内存/2.5寸500G硬盘
Graphics Card	Intel Core Graphics Intel HD Graphics	Intel Core Graphics Intel HD Graphics	Intel Core Graphics Intel HD Graphics
Interface	4 USB 2.0 ports, 2 USB 3.0 ports, 1 RJ45 network interface, 1 MIC input, 1 HDMI output, 1 VGA output, 1 LINE output, supports wifi 802.11b/g/n
Operating System	Windows 7 Ultimate Operating System
Computer Configuration Plan II (OPS Plan)
	Mid-range / i3 configuration	High-end / i5 configuration	Top-of-the-line / i7 configuration
Chipset	Intel chipset
CPU	Intel Core i3	Intel Core i5	Intel Core i7
Storage	4G DDR3 memory / 2.5-inch 500GB hard drive	4G DDR3 memory / 2.5-inch 500GB hard drive	4G DDR3 memory / 2.5-inch 500GB hard drive
Graphics Card	Intel Core Graphics Intel HD Graphics	Intel Core Graphics Intel HD Graphics	Intel Core Graphics Intel HD Graphics
Interface	2 USB 2.0 ports, 2 USB 3.0 ports, 1 RJ45 network interface, 1 HDMI, 1 LINE output, 1 MIC input, supports wifi;
Operating System	Windows 7 Ultimate Operating System

Note: The difference between the desktop solution and the notebook solution lies in that the desktop solution has a more comprehensive interface and higher processing speed, while the notebook solution has better graphic display performance. [Take actual items as the standard]
